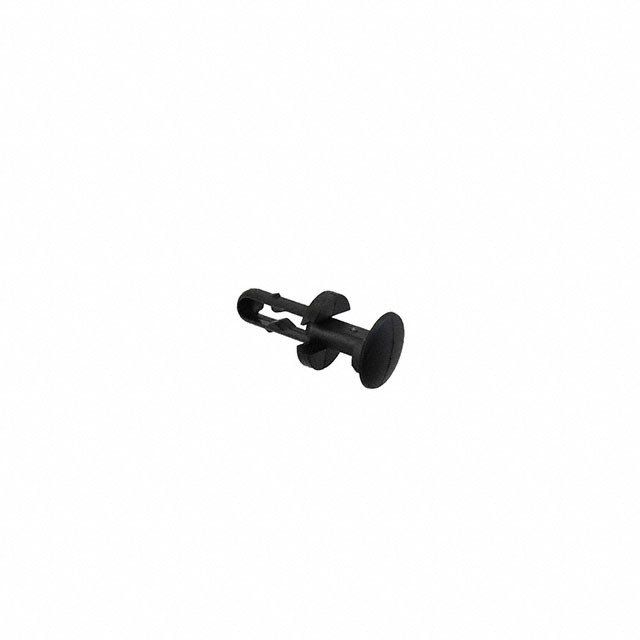

27CINCH02B

Active

Essentra Access Solutions

CINCH RIVET, .187 HOLE DIA, .020

Search across all available documentation for this part.

Active

Essentra Access Solutions

CINCH RIVET, .187 HOLE DIA, .020

Technical Specifications

Parameters and characteristics for this part

Part	Color	Hole Diameter	Hole Diameter	Hole Diameter	Type	Grip Range [Max]	Grip Range [Min]	Grip Range [Max]	Grip Range [Min]	Rivet Length	Rivet Length	Head Diameter [diameter]	Head Diameter [diameter]	Material	Head Diameter [diameter]	Rivet Length	Head Height	Head Height	Grip Range [Min] [diameter]	Grip Range [Max] [diameter]	Grip Range [Min] [diameter]	Grip Range [Max] [diameter]	Hole Diameter [diameter]	Hole Diameter [diameter]	Hole Diameter [diameter]	Head Diameter	Head Diameter
Essentra Access Solutions 27CINCH04	Natural	0.25 in	6.35 mm	0.25 in	Snap Rivet	4.42 mm	0.02 "	0.174 "	0.51 mm	0.555 in	14.1 mm	15.88 mm	0.625 in	Nylon
Essentra Access Solutions 27CINCH01					Snap Lock Pin					0.375 in	0.375 in	6.35 mm	0.25 in	Nylon	0.25 "	9.53 mm	2.03 mm	0.08 in	0.02 "	0.109 "	0.51 mm	2.77 mm	0.125 in 3.18 mm	0.125 in
Essentra Access Solutions 27CINCH02B	Black				Snap Rivet	4.42 mm	0.02 "	0.174 "	0.51 mm	0.12 in	3.05 mm		0.375 in	Nylon									0.187 "	4.75 mm	3 /16"	9.53 mm	0.375 in
Essentra Access Solutions 27CINCH02	Natural				Snap Rivet	4.42 mm	0.02 "	0.174 "	0.51 mm	0.12 in	3.05 mm		0.375 in	Nylon									0.187 "	4.75 mm	3 /16"	9.53 mm	0.375 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Snap Rivet 0.020" ~ 0.174" (0.51mm ~ 4.42mm) Grip Range Nylon
