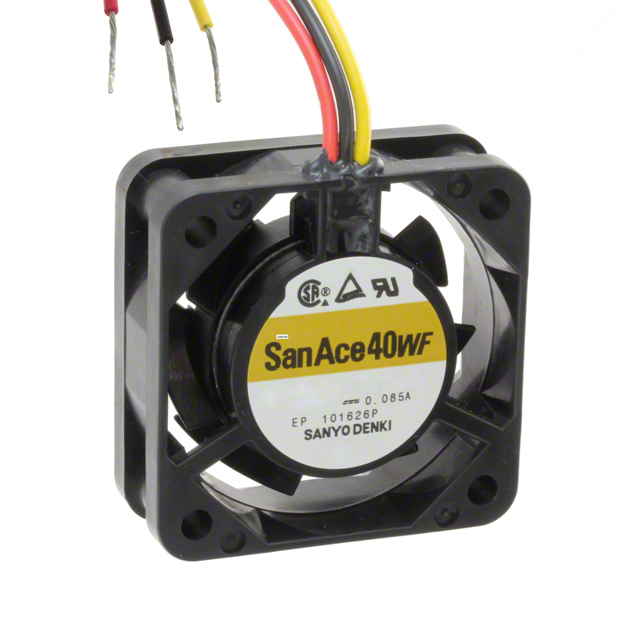

Specification	9WF0424F601

Air Flow	7.8 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	0.076 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Ingress Protection	Oil Resistant
Lifetime	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	37 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	1.82 W
RPM	11000 RPM
Size / Dimension Height	40 mm
Size / Dimension Length	40 mm
Size / Dimension Shape	Square
Static Pressure	0.252 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	27.6 VDC
Voltage Range (Min)	20.4 VDC
Weight	0.111 lb
Width	20 mm

9WF0424 Series

Part	Noise	Bearing Type	RPM	Features	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Static Pressure	Approval Agency	Air Flow	Fan Type	Voltage - Rated	Operating Temperature (Min)	Operating Temperature (Max)	Width	Termination Leads Count	Termination Type	Termination	Weight	Power (Watts)	Voltage Range (Max)	Voltage Range (Min)	Lifetime	Current Rating	Material - Frame	Material - Blade	Ingress Protection
Sanyo Denki America Inc. 9WF0424F6D01	37 dB	Ball	11000 RPM	Locked Rotor Sensor	40 mm	Square	40 mm	0.252 in H2O	CSA TUV UL	7.8 CFM	Tubeaxial	24 VAC	-4 °F	158 °F	20 mm	3	Wire Leads	3 Wire Leads	0.111 lb	1.82 W	27.6 VDC	20.4 VDC	40000 Hrs	0.076 A	Plastic	Plastic
Sanyo Denki America Inc. 9WF0424H6D01	42 dB	Ball	13100 RPM	Locked Rotor Sensor	40 mm	Square	40 mm	0.361 in H2O	CSA TUV UL	9.2 CFM	Tubeaxial	24 VAC	-4 °F	158 °F	20 mm	3	Wire Leads	3 Wire Leads	0.111 lb	2.64 W	27.6 VDC	20.4 VDC	40000 Hrs	110 mA	Plastic	Plastic
Sanyo Denki America Inc. 9WF0424H702	38 dB	Ball	11300 RPM	Locked Rotor Protection	40 mm	Square	40 mm	0.32 in H2O	CSA TUV UL	6.9 CFM	Tubeaxial	24 VAC	-4 °F	158 °F	15 mm	2 leads	Wire Leads	2 Wire Leads	0.078 lb	2.04 W	27.6 VDC	20.4 VDC	40000 Hrs	85 mA	Plastic	Plastic	Oil Resistant
Sanyo Denki America Inc. 9WF0424H602	42 dB	Ball	13100 RPM		40 mm	Square	40 mm	0.361 in H2O	CSA TUV UL	9.2 CFM	Tubeaxial	24 VAC	14 °F	158 °F	20 mm	2 leads	Wire Leads	2 Wire Leads	0.111 lb	2.64 W	27.6 VDC	20.4 VDC	40000 Hrs	110 mA	Plastic	Plastic	Oil Resistant
Sanyo Denki America Inc. 9WF0424H701	38 dB	Ball	11300 RPM	Speed Sensor (Tach)	40 mm	Square	40 mm	0.32 in H2O	CSA TUV UL	6.9 CFM	Tubeaxial	24 VAC	-4 °F	158 °F	15 mm	3	Wire Leads	3 Wire Leads	0.077 lb	2.04 W	27.6 VDC	20.4 VDC	40000 Hrs	85 mA	Plastic	Plastic	Oil Resistant
Sanyo Denki America Inc. 9WF0424F601	37 dB	Ball	11000 RPM	Speed Sensor (Tach)	40 mm	Square	40 mm	0.252 in H2O	CSA TUV UL	7.8 CFM	Tubeaxial	24 VAC	-4 °F	158 °F	20 mm	3	Wire Leads	3 Wire Leads	0.111 lb	1.82 W	27.6 VDC	20.4 VDC	40000 Hrs	0.076 A	Plastic	Plastic	Oil Resistant
