LCQT-QFP0.8-44

Active

Aries Electronics

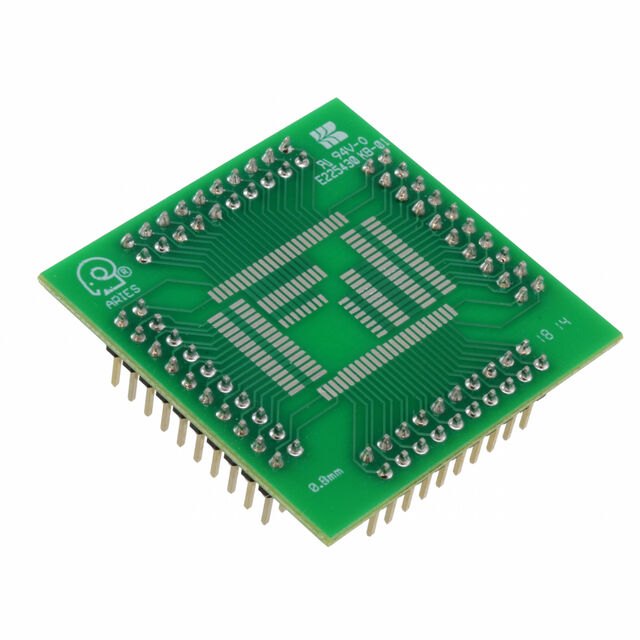

SOCKET ADAPTER MULT PKG TO 44QFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCQT-QFP0.8-44

Active

Aries Electronics

SOCKET ADAPTER MULT PKG TO 44QFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LCQT-QFP0.8-44	LCQT-QF Series

Board Material	-	FR4 Epoxy Glass
Board Thickness	0.062 in	0.062 in
Board Thickness	0.0625 in	0.0625 in
Board Thickness	1.57 mm	1.57 mm
Contact Finish - Post	-	Gold
Contact Finish Thickness - Post	-	Flash
Contact Material - Post	-	Brass
Convert From (Adapter End)	-	Multiple Packages
Convert To (Adapter End)	-	QFP
Housing Material	-	Polyester
Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Material Flammability Rating	-	UL94 V-0
Mounting Type	-	Through Hole
Number of Pins	-	32 - 80 pins
Number of Positions	44	44 - 64
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Package Accepted	QFP	QFP
Pitch - Mating	-	0.02 - 0.031 in
Pitch - Mating	-	0.5 - 0.8 mm
Pitch - Post	-	2.54 mm
Pitch - Post	-	0.1 in
Pitch [x]	0.8 mm	0.5 - 0.8 mm
Pitch [x]	0.031 in	0.02 - 0.031 in
Proto Board Type	SMD to DIP	SMD to DIP
Size / Dimension [x]	43.18 mm	38.1 - 43.18 mm
Size / Dimension [x]	1.7 "	1.5 - 1.7 "
Size / Dimension [y]	43.18 mm	38.1 - 43.18 mm
Size / Dimension [y]	1.7 "	1.5 - 1.7 "
Termination	-	Solder
Termination Post Length	-	0.236 in
Termination Post Length	-	6 mm

LCQT-QF Series

SOCKET ADAPTER MULT PKG TO 64QFP

Part	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Board Thickness	Board Thickness	Board Thickness	Number of Positions	Pitch [x]	Pitch [x]	Proto Board Type	Package Accepted	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post [custom]	Material Flammability Rating	Termination Post Length [x]	Termination Post Length [x]	Convert To (Adapter End)	Board Material	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Pins	Mounting Type	Contact Finish - Post	Convert From (Adapter End)	Housing Material	Termination
Aries Electronics LCQT-QFP0.8-64	FR4 Epoxy Glass	43.18 mm	1.7 "	43.18 mm	1.7 "	0.062 in	0.0625 in	1.57 mm	64	0.8 mm	0.031 in	SMD to DIP	QFP
Aries Electronics LCQT-QFP0.5-60														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	60 pins	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.65-52														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.026 in	0.65 mm	52	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.8-80														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.031 in	0.8 mm	80	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.65-80														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.026 in	0.65 mm	80	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.5-80														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	80	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.5-40-1														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	40	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.5-40														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	40	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.8-44	FR4 Epoxy Glass	43.18 mm	1.7 "	43.18 mm	1.7 "	0.062 in	0.0625 in	1.57 mm	44	0.8 mm	0.031 in	SMD to DIP	QFP
Aries Electronics LCQT-QFP0.65-64	FR4 Epoxy Glass	38.1 mm	1.5 in	38.1 mm	1.5 in	0.062 in	0.0625 in	1.57 mm	64	0.65 mm	0.026 in	SMD to DIP	QFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.54
		10	$ 11.95
		25	$ 10.80
		50	$ 10.03
		100	$ 9.33
		250	$ 8.50
		500	$ 7.94
		1000	$ 7.44

Description

General part information

LCQT-QF Series

SOCKET ADAPTER MULT PKG TO 44QFP

Documents

Technical documentation and resources
