A10114-02

Obsolete

Laird Technologies - Thermal Materials

THERM PAD 203.2MMX203.2MM W/ADH

Search across all available documentation for this part.

Obsolete

Laird Technologies - Thermal Materials

THERM PAD 203.2MMX203.2MM W/ADH

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 203.2MMX203.2MM W/ADH

Part	Outline [x]	Outline [y]	Color	Shape	Backing, Carrier	Thermal Conductivity	Thickness	Thickness	Adhesive
Laird Technologies - Thermal Materials A10114-02	203.2 mm	203.2 mm	Blue	Square	Fiberglass	5 W/m-K	0.508 mm	0.02 in	Adhesive - One Side
Laird Technologies - Thermal Materials A10114-26	406.4 mm	406.4 mm	Blue	Square	Fiberglass	5 W/m-K	0.508 mm	0.02 in	Adhesive - One Side
Laird Technologies - Thermal Materials A10114-25	406.4 mm	406.4 mm	Blue	Square	Fiberglass	5 W/m-K	0.508 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

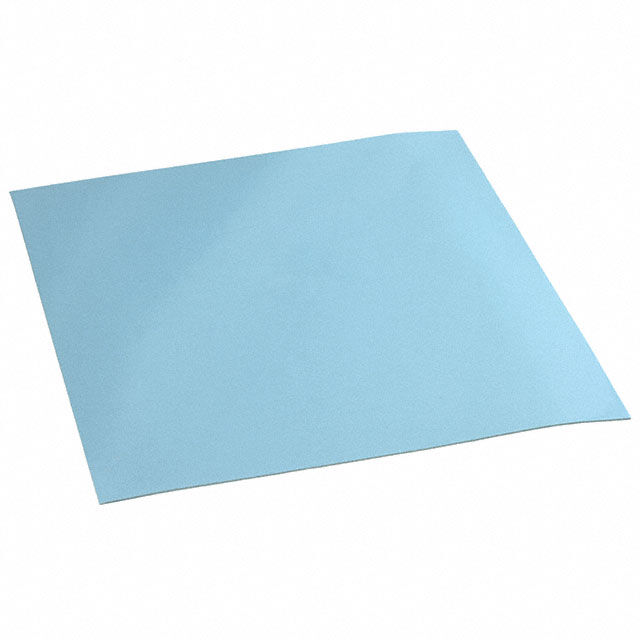

Thermal Pad Blue 203.20mm x 203.20mm Square Adhesive - One Side
