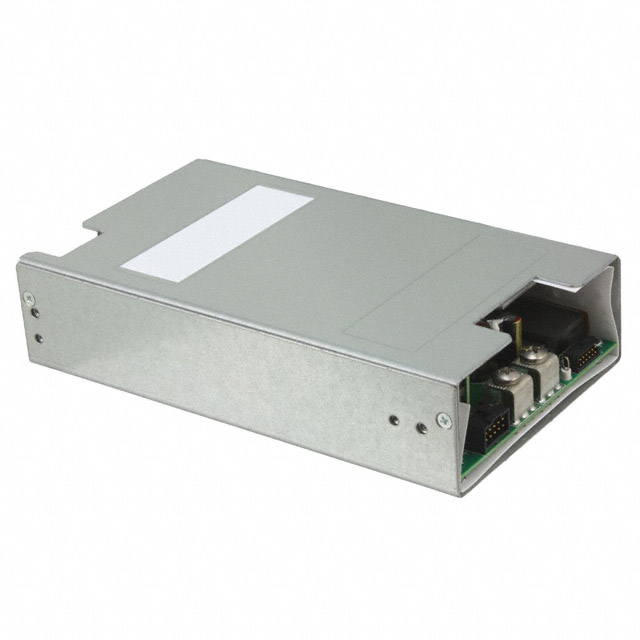

CEF400-112C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 12V 400W
Deep-Dive with AI
Search across all available documentation for this part.
CEF400-112C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 12V 400W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CEF400-112C |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus |
| Current - Output 1 | 33.3 A |
| Efficiency | 83 % |
| Features | Adjustable Output, Load Sharing, Universal Input, Remote On/Off, I2C Interface, Remote Sense |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 7 in |
| Size / Dimension [y] | 177.8 mm |
| Size / Dimension [z] | 40.4 mm |
| Size / Dimension [z] | 1.59 " |
| Type | Enclosed |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
CEF400 Series
AC/DC CONVERTER 12V 400W
| Part | Efficiency | Features | Approval Agency | Number of Outputs | Current - Output 1 | Mounting Type | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 | Voltage - Isolation | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. CEF400-112C | 83 % | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Universal Input | CB, cURus | 1 | 33.3 A | Chassis Mount | Enclosed | 4 in | 101.6 mm | 7 in | 40.4 mm | 1.59 " | 177.8 mm | 12 V | 1.5 kV | ITE (Commercial) |
Description
General part information
CEF400 Series
Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
