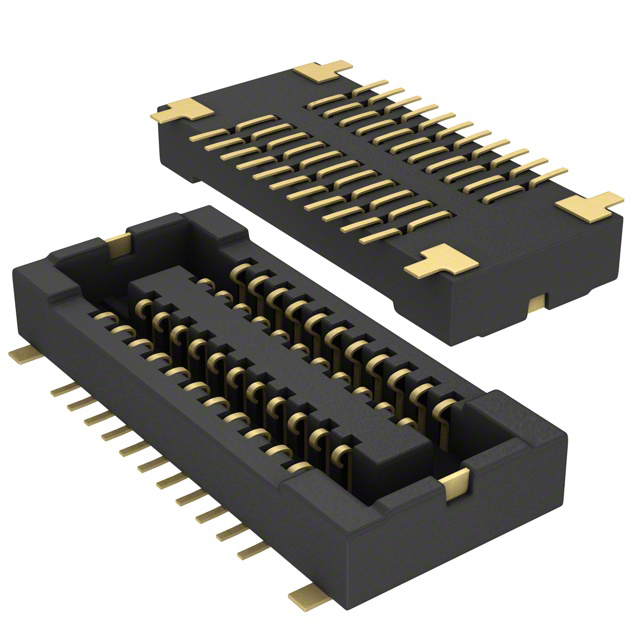

AXT522124

Obsolete

Panasonic Electric Works

CONN SOCKET 22POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 22POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT522124

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.97 mm
Height Above Board	0.038 in
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	22 positions
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Features	Mated Stacking Heights	Contact Finish	Number of Rows	Height Above Board	Height Above Board	Connector Type	Number of Positions	Mounting Type
Panasonic Electric Works AXT522124	0.016 in	0.4 mm	Solder Retention	1 mm	Gold	2	0.97 mm	0.038 in	Outer Shroud Contacts Socket	22 positions	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
