W19B320ABT7H
ActiveWinbond Electronics

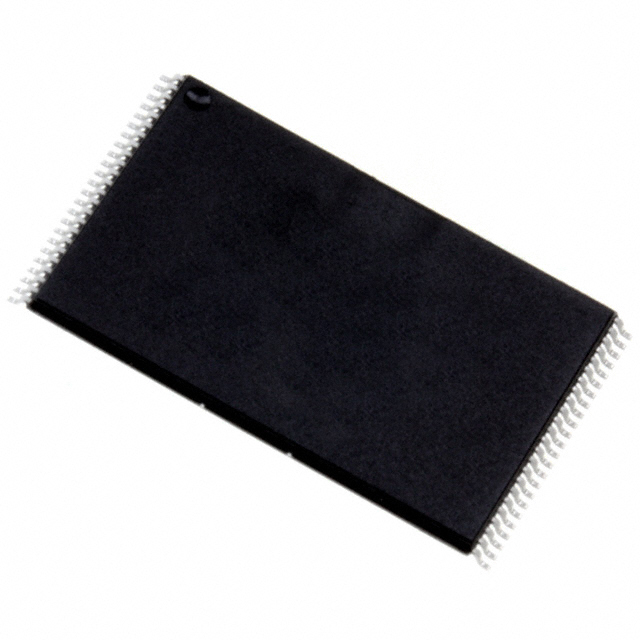

IC FLASH 32MBIT PARALLEL 48TSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W19B320ABT7H
ActiveWinbond Electronics
IC FLASH 32MBIT PARALLEL 48TSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W19B320ABT7H | W19B320 Series |
|---|---|---|
| Access Time | 70 ns | 70 ns |
| Memory Format | FLASH | FLASH |
| Memory Interface | Parallel | Parallel |
| Memory Organization [custom] | 16, 8 | 8 - 16 |
| Memory Organization [custom] | 4 M, 2 M | 2 - 4 M |
| Memory Size | 32 Gbit | 32 Gbit |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 C | 85 C |
| Operating Temperature [Min] | -20 °C | -20 °C |
| Package / Case | 48-TFSOP | 48-TFSOP |
| Package / Case [y] | 18.4 mm | 18.4 mm |
| Package / Case [y] | 0.724 in | 0.724 in |
| Supplier Device Package | 48-TSOP | 48-TSOP |
| Technology | FLASH | FLASH |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
W19B320 Series
IC FLASH 32MBIT PARALLEL 48TSOP
| Part | Mounting Type | Memory Format | Memory Interface | Package / Case | Package / Case [y] | Package / Case [y] | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Memory Type | Memory Size | Access Time | Supplier Device Package | Technology | Memory Organization [custom] | Memory Organization [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Winbond Electronics W19B320BTT7H | Surface Mount | FLASH | Parallel | 48-TFSOP | 18.4 mm | 0.724 in | 2.7 V | 3.6 V | -20 °C | 85 C | Non-Volatile | 32 Gbit | 70 ns | 48-TSOP | FLASH | 8, 16 | 2 M, 4 M |
Winbond Electronics W19B320ABT7H | Surface Mount | FLASH | Parallel | 48-TFSOP | 18.4 mm | 0.724 in | 2.7 V | 3.6 V | -20 °C | 85 C | Non-Volatile | 32 Gbit | 70 ns | 48-TSOP | FLASH | 8, 16 | 2 M, 4 M |
Description
General part information
W19B320 Series
FLASH Memory IC 32Mbit Parallel 70 ns 48-TSOP
