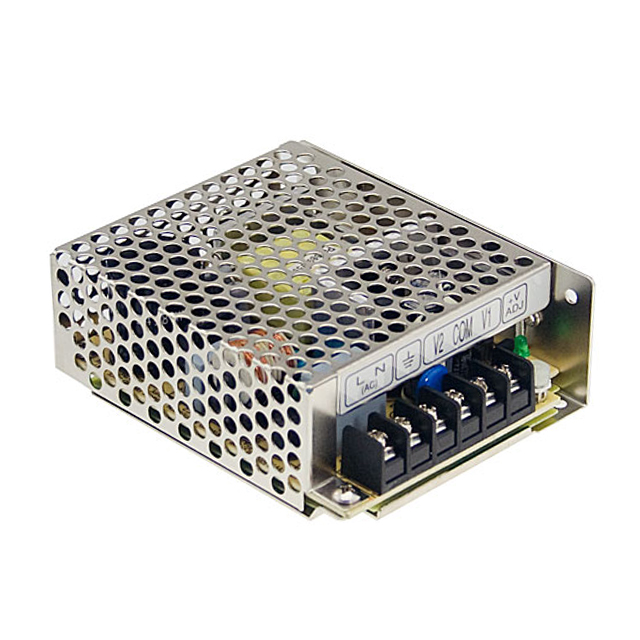

RD-35B

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 24V 35W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 24V 35W

Technical Specifications

Parameters and characteristics for this part

Specification	RD-35B

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	2.2 A
Current - Output 2	1 A
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	35 W
Size / Dimension [x]	99 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	3.23 "
Size / Dimension [y]	82 mm
Size / Dimension [z]	36 mm
Size / Dimension [z]	1.42 in
Type	Enclosed
Voltage - Input [Max]	264 VAC, 373 VDC
Voltage - Input [Min]	88 VAC, 125 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	24 V

Part	Type	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Current - Output 2	Voltage - Output 1	Minimum Load Required	Applications	Approval Agency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Mounting Type	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Power (Watts)	Features	Number of Outputs
MEAN WELL USA Inc. RD-35B	Enclosed	88 VAC 125 VDC	264 VAC 373 VDC	2.2 A	1 A	5 V		ITE (Commercial)	CB CE cURus TUV	3.23 "	82 mm	99 mm	3.9 "	36 mm	1.42 in	Chassis Mount	24 V	-25 °C	70 °C	3000 V	35 W	Adjustable Output Universal Input	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 5V 24V 88 ~ 264 VAC, 125 ~ 373 VDC Input
