Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-068-500-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	68
Number of Positions/Bay/Row [custom]	34
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

846-068 Series

...

Part	Termination	Contact Type	Contact Finish	Contact Material	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Read Out	Card Type	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Termination Rows	Flange Feature	Color	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Gender	Material - Insulation	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 846-068-526-807	Solder	Cantilever	Gold	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	34	2	M3 Threaded Insert Top Mount Opening	Green	10 Áin	0.25 Ám	125 °C	-40 °C	68	Female	Diallyl Phthalate (DAP)
EDAC Inc. 846-068-500-208	Solder Eyelet(s)	Cantilever	Gold	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	34	2	4-40 Flush Mount Threaded Insert Top Opening	Green	10 Áin	0.25 Ám	125 °C	-40 °C	68	Female	Diallyl Phthalate (DAP)
EDAC Inc. 846-068-559-201	Solder	Cantilever	Gold	Copper Alloy	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	34	2		Green	10 Áin	0.25 Ám	125 °C	-40 °C	68	Female	Diallyl Phthalate (DAP)
EDAC Inc. 846-068-560-203	Solder	Cantilever	Gold	Copper Alloy	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	34	2	Floating Bobbin Flush Mount	Green	10 Áin	0.25 Ám	125 °C	-40 °C	68	Female	Diallyl Phthalate (DAP)	Card Extender	0.116 in	2.95 mm
EDAC Inc. 846-068-558-204	Solder	Cantilever	Gold	Copper Alloy	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	34	2	Flush Mount Top Opening Unthreaded	Green	10 Áin	0.25 Ám	125 °C	-40 °C	68	Female	Diallyl Phthalate (DAP)		0.156 in	3.96 mm
EDAC Inc. 846-068-540-804	Wire Wrap	Cantilever	Gold	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	34	2	Top Mount Opening Unthreaded	Green	10 Áin	0.25 Ám	125 °C	-40 °C	68	Female	Diallyl Phthalate (DAP)		0.156 in	3.96 mm
EDAC Inc. 846-068-522-212	Solder	Cantilever	Gold	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	34	2	Flush Mount Side Opening Unthreaded	Green	10 Áin	0.25 Ám	125 °C	-40 °C	68	Female	Diallyl Phthalate (DAP)		0.128 "	3.25 mm
EDAC Inc. 846-068-522-803	Solder	Cantilever	Gold	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	34	2	Floating Bobbin Top Mount Opening	Green	10 Áin	0.25 Ám	125 °C	-40 °C	68	Female	Diallyl Phthalate (DAP)		0.116 in	2.95 mm
EDAC Inc. 846-068-556-212	Solder	Cantilever	Gold	Copper Alloy	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	34	2	Flush Mount Side Opening Unthreaded	Green	10 Áin	0.25 Ám	125 °C	-40 °C	68	Female	Diallyl Phthalate (DAP)	Card Extender	0.128 "	3.25 mm
EDAC Inc. 846-068-520-202	Solder	Cantilever	Gold	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	34	2	Flush Mount Top Opening Unthreaded	Green	10 Áin	0.25 Ám	125 °C	-40 °C	68	Female	Diallyl Phthalate (DAP)		0.128 "	3.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 114.34

Description

General part information

846-068 Series

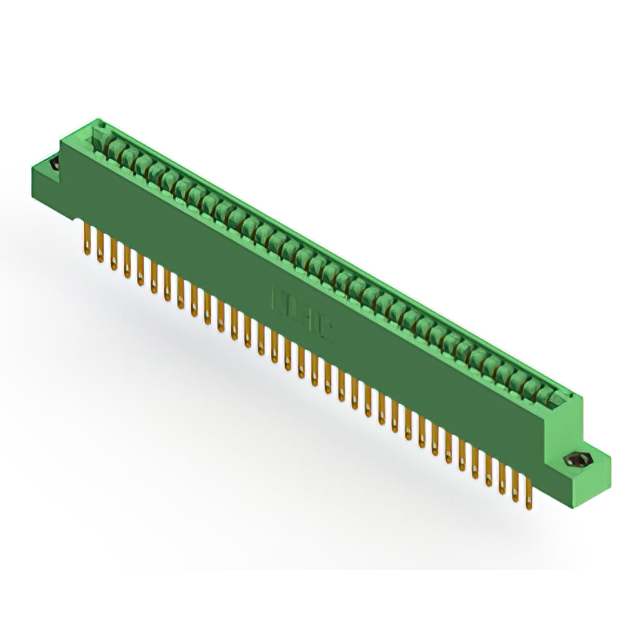

68 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
