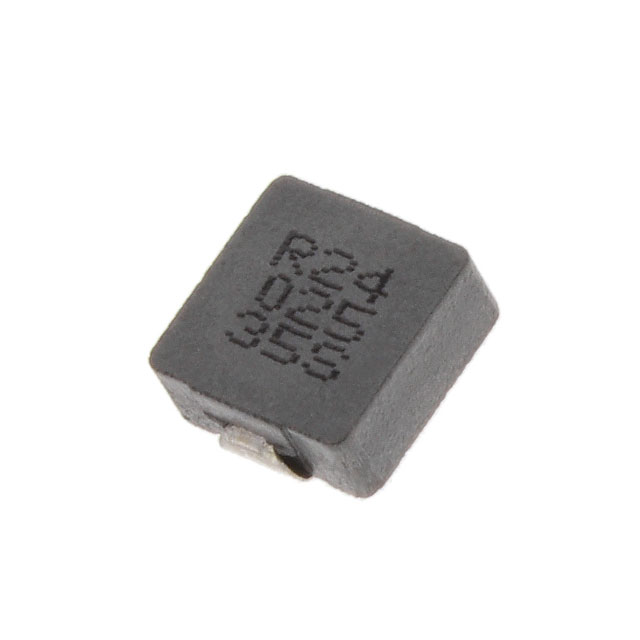

CMLE063T-8R2MS

Active

Delta Electronics/Cyntec

FIXED IND 8.2UH 5.1A 60MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMLE063T-8R2MS

Active

Delta Electronics/Cyntec

FIXED IND 8.2UH 5.1A 60MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMLE063T-8R2MS	CMLE063T Series

Current - Saturation (Isat)	5.7 A	5.5 - 42.5 A
Current Rating (Amps)	5.1 A	4.2 - 40 A
DC Resistance (DCR)	-	1.3 - 28 mOhm
DC Resistance (DCR)	-	0.65 - 66 mOhm
Height - Seated (Max)	3 mm	3 mm
Height - Seated (Max) [Max]	0.118 in	0.118 in
Inductance	8.2 µH	0.68 - 360 µH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Metal	Metal
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Nonstandard	Nonstandard
Shielding	Shielded	Shielded
Size / Dimension [x]	6.95 mm	6.95 mm
Size / Dimension [x]	0.274 "	0.274 - 7.25 "
Size / Dimension [y]	6.6 mm	6.6 mm
Size / Dimension [y]	0.26 "	0.26 - 6.6 "
Tolerance	20 %	20 %

CMLE063T Series

FIXED IND 1UH 16A 6.5 MOHM SMD

Part	Tolerance	Height - Seated (Max)	Height - Seated (Max) [Max]	Mounting Type	Inductance	Inductance Frequency - Test	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Current Rating (Amps)	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Material - Core	DC Resistance (DCR)
Delta Electronics/Cyntec CMLE063T-1R0MS	20 %	3 mm	0.118 in	Surface Mount	1 µH	100 kHz	14 A	6.5 mOhm	16 A	Nonstandard	6.95 mm	0.274 "	6.6 mm	0.26 "	-55 °C	125 °C	Shielded	Metal
Delta Electronics/Cyntec CMLE063T-6R8MS	20 %	3 mm	0.118 in	Surface Mount	6.8 µH	100 kHz	6.1 A	28 mOhm	5.5 Amps	Nonstandard	6.95 mm	0.274 "	6.6 mm	0.26 "	-55 °C	125 °C	Shielded	Metal
Delta Electronics/Cyntec CMLE063T-R15MS0R907	20 %	3 mm	0.118 in	Surface Mount	150 nH	100 kHz	41 A		38 A	Nonstandard		0.285 in, 7.25 mm		0.26 ", 6.6 mm	-55 °C	125 °C	Shielded	Metal	0.9 mOhm
Delta Electronics/Cyntec CMLE063T-8R2MS	20 %	3 mm	0.118 in	Surface Mount	8.2 µH	100 kHz	5.7 A		5.1 A	Nonstandard	6.95 mm	0.274 "	6.6 mm	0.26 "	-55 °C	125 °C	Shielded	Metal
Delta Electronics/Cyntec CMLE063T-2R2MS	20 %	3 mm	0.118 in	Surface Mount	2.2 µH	100 kHz		12.8 mOhm	10 A	Nonstandard	6.95 mm	0.274 "	6.6 mm	0.26 "	-55 °C	125 °C	Shielded	Metal
Delta Electronics/Cyntec CMLE063T-R15MS0R987	20 %	3 mm	0.118 in	Surface Mount	150 nH	100 kHz	35 A		35 A	Nonstandard		0.285 in, 7.25 mm		0.26 ", 6.6 mm	-55 °C	125 °C	Shielded	Metal	0.98 mOhm
Delta Electronics/Cyntec CMLE063T-R22MS	20 %	3 mm	0.118 in	Surface Mount	220 nH	100 kHz	32 A	1.3 mOhm	37 A	Nonstandard		0.285 in, 7.25 mm		0.26 ", 6.6 mm	-55 °C	125 °C	Shielded	Metal
Delta Electronics/Cyntec CMLE063T-100MS	20 %	3 mm	0.118 in	Surface Mount	10 µH	100 kHz	5.5 A		4.2 A	Nonstandard	6.95 mm	0.274 "	6.6 mm	0.26 "	-55 °C	125 °C	Shielded	Metal	66 mOhm
Delta Electronics/Cyntec CMLE063T-4R7MS	20 %	3 mm	0.118 in	Surface Mount	4.7 ÁH	100 kHz	8 A	26 mOhm	6.7 A	Nonstandard	6.95 mm	0.274 "	6.6 mm	0.26 "	-55 °C	125 °C	Shielded	Metal
Delta Electronics/Cyntec CMLE063T-R36MS	20 %	3 mm	0.118 in	Surface Mount	360 nH	100 kHz		2.55 mOhm	25 A	Nonstandard		0.285 in, 7.25 mm		0.26 ", 6.6 mm	-55 °C	125 °C	Shielded	Metal
