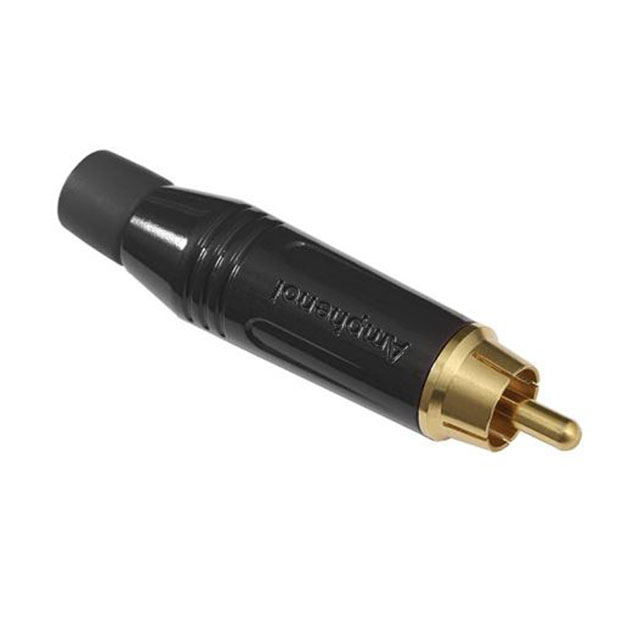

ACPR-BLK

Active

AMPHENOL AUDIO

CONN PLUG RCA BLACK

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN PLUG RCA BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACPR-BLK	ACPR Series

Body Color	Gold, Black	Gold, Black, White, Green, Blue
Connector Type	Phono (RCA) Plug	Phono (RCA) Plug
Contact Material	Brass	Brass
Contact Material - Plating [custom]	Gold	Gold
Current Rating (Amps)	10 A	10 A
Gender	Male	Male
Housing Material	Zinc Alloy	Zinc Alloy
Includes	1 Connector, 1 Insulator Tube, 1 Handle	1 Connector, 1 Insulator Tube, 1 Handle
Internal Switch(s)	False	False
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Shielding	Unshielded	Unshielded
Signal Lines	Mono	Mono
Termination	Solder	Solder

CONN PLUG RCA BLACK

Part	Signal Lines	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	Contact Material - Plating [custom]	Gender	Body Color	Connector Type	Includes	Mounting Type	Contact Material	Current Rating (Amps)	Termination	Housing Material
AMPHENOL AUDIO ACPR-BLK	Mono	2	2	Unshielded	Gold	Male	Black, Gold	Phono (RCA) Plug	1 Connector, 1 Handle, 1 Insulator Tube	Free Hanging (In-Line)	Brass	10 A	Solder	Zinc Alloy
AMPHENOL AUDIO ACPR-WHT	Mono	2	2	Unshielded	Gold	Male	Gold, White	Phono (RCA) Plug	1 Connector, 1 Handle, 1 Insulator Tube	Free Hanging (In-Line)	Brass	10 A	Solder	Zinc Alloy
AMPHENOL AUDIO ACPR-GRN	Mono	2	2	Unshielded	Gold	Male	Gold, Green	Phono (RCA) Plug	1 Connector, 1 Handle, 1 Insulator Tube	Free Hanging (In-Line)	Brass	10 A	Solder	Zinc Alloy
AMPHENOL AUDIO ACPR-BLU	Mono	2	2	Unshielded	Gold	Male	Blue, Gold	Phono (RCA) Plug	1 Connector, 1 Handle, 1 Insulator Tube	Free Hanging (In-Line)	Brass	10 A	Solder	Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phono (RCA) Plug Mono Connector Solder
