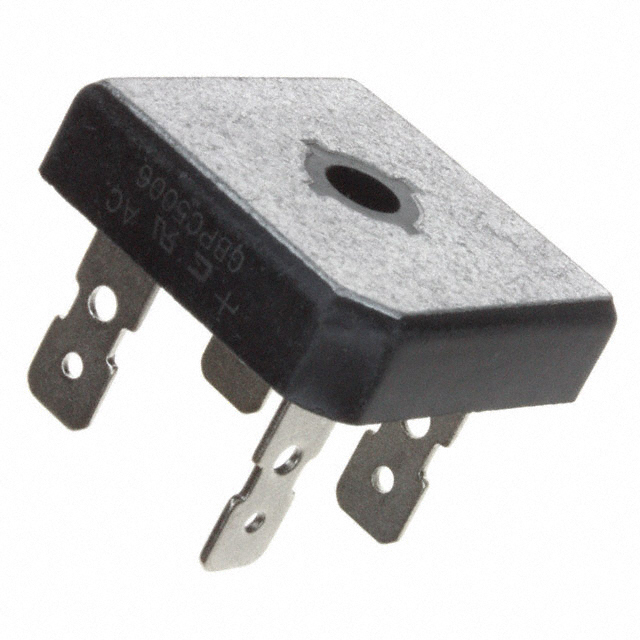

GBPC3502-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 200V 35A GBPC

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 200V 35A GBPC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GBPC3502-G	GBPC3502 Series

Current - Average Rectified (Io)	35 A	35 A
Current - Reverse Leakage @ Vr	10 µA	10 µA
Diode Type	Single Phase	Single Phase
Mounting Type	QC Terminal	QC Terminal, Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4-Square, GBPC	4-Square, GBPC, GBPC-W
Supplier Device Package	GBPC	GBPC, GBPC-W
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V	1.1 V
Voltage - Peak Reverse (Max) [Max]	200 V	200 V

BRIDGE RECT 1PHASE 200V 35A GBPC

Part	Current - Average Rectified (Io)	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Diode Type	Current - Reverse Leakage @ Vr
Comchip Technology GBPC3502-G	35 A	GBPC	200 V	1.1 V	QC Terminal	4-Square, GBPC	-55 °C	150 °C	Standard	Single Phase	10 µA
Comchip Technology GBPC3502W-G	35 A	GBPC-W	200 V	1.1 V	Through Hole	4-Square, GBPC-W	-55 °C	150 °C	Standard	Single Phase	10 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.92

General part information

Bridge Rectifier Single Phase Standard 200 V QC Terminal GBPC
