164A19189X

Active

Amphenol CONEC

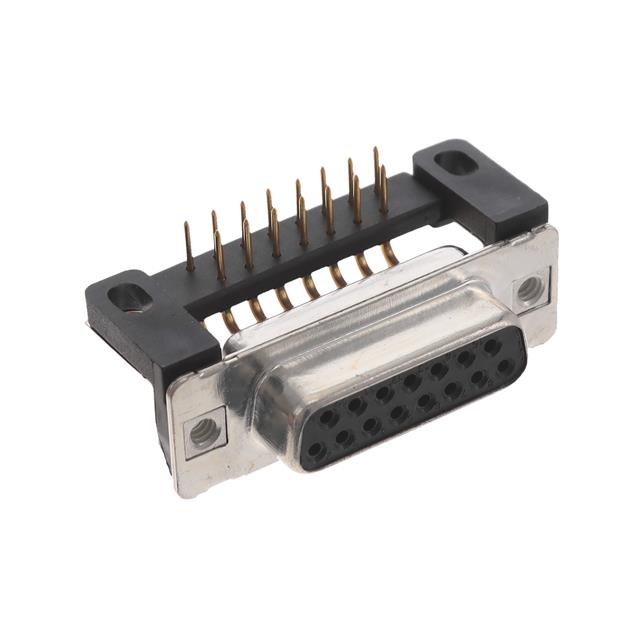

CONN D-SUB RCPT 15POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	164A19189X

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2
Termination	Solder

Part	Contact Finish Thickness	Dielectric Material	Contact Type	Number of Positions	Features	Number of Rows	Voltage Rating	Contact Finish	Connector Style	Backset Spacing	Backset Spacing	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size, Connector Layout	Material Flammability Rating	Connector Type	Flange Feature	Current Rating (Amps)	Color
Amphenol CONEC 164A19139X	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Signal	50	Board Lock Mounting Brackets	3	125 VDC	Gold	D-Sub	9.4 mm	0.37 in	Through Hole Right Angle	Solder	-55 °C	125 °C	Copper Alloy	5	UL94 V-0	Receptacle Female Sockets	Housing/Shell (4-40)	7.5 A	Black
Amphenol CONEC 164A19159X		Polybutylene Terephthalate (PBT) Glass Filled	Signal	50		3	125 VDC	Gold	D-Sub	9.4 mm	0.37 in	Through Hole Right Angle	Solder	-55 °C	125 °C	Copper Alloy	5	UL94 V-0	Receptacle Female Sockets	4-40	7.5 A	Black
Amphenol CONEC 164A19189X	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Signal	15	Mounting Brackets	2		Gold	D-Sub	9.4 mm	0.37 in	Board Edge Right Angle Through Hole	Solder			Copper Alloy	2	UL94 V-0	Receptacle Female Sockets	Housing/Shell (4-40)		Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 12.04

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
