3-102-632
ActiveSCHURTER Inc.
MSM MECHANICAL METAL LINE SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-102-632
ActiveSCHURTER Inc.
MSM MECHANICAL METAL LINE SWITCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-102-632 | 3-102 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Clear, Silver |
| Current Rating (Amps) | 10 A | 10 - 100 A |
| Electrical Life | 50000 Cycles | 50000 - 200000 Cycles |
| Features | - | Ceramic Actuator |
| Illumination Type, Color | White, LED | White, LED, Red, Green, Blue, Yellow |
| Illumination Voltage (Nominal) | 24 V | 24 V |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 1500000 Cycles | 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 16.1 mm | 16.1 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal, Illuminated | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 250 V | 250 V |
| Voltage Rating - DC | - | 30 V |
3-102 Series
MSM MECHANICAL METAL LINE SWITCH
| Part | Type | Color - Actuator/Cap | Illumination Type, Color | Actuator Marking | Features | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [diameter] | Mounting Type | Mechanical Life | Voltage Rating - AC | Switch Function | Ingress Protection | Electrical Life | Circuit | Illumination Voltage (Nominal) | Termination Style | Actuator Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 3-102-648 | Anti-Vandal, Illuminated | Clear | LED, White | No Marking | Ceramic Actuator | 10 A | -25 °C | 85 °C | 16.1 mm | Panel Mount, Front | 1500000 Cycles | 250 V | On-Mom | IP40 | 50000 Cycles | SPDT | 24 V | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | |
SCHURTER Inc. 3-102-633 | Anti-Vandal, Illuminated | Clear | LED, Red | No Marking | Ceramic Actuator | 100 mA | -25 °C | 85 °C | 16.1 mm | Panel Mount, Front | 1500000 Cycles | On-Mom | IP40 | 200000 Cycles | SPDT | 24 V | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | 30 V | |
SCHURTER Inc. 3-102-636 | Anti-Vandal, Illuminated | Clear | Green, LED | No Marking | Ceramic Actuator | 100 mA | -25 °C | 85 °C | 16.1 mm | Panel Mount, Front | 1500000 Cycles | On-Mom | IP40 | 200000 Cycles | SPDT | 24 V | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | 30 V | |
SCHURTER Inc. 3-102-632 | Anti-Vandal, Illuminated | Silver | LED, White | No Marking | 10 A | -25 °C | 85 °C | 16.1 mm | Panel Mount, Front | 1500000 Cycles | 250 V | On-Mom | IP40 | 50000 Cycles | SPDT | 24 V | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | ||
SCHURTER Inc. 3-102-624 | Anti-Vandal, Illuminated | Silver | Blue, LED | No Marking | 100 mA | -25 °C | 85 °C | 16.1 mm | Panel Mount, Front | 1500000 Cycles | On-Mom | IP40 | 200000 Cycles | SPDT | 24 V | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | 30 V | ||
SCHURTER Inc. 3-102-618 | Anti-Vandal, Illuminated | Silver | LED, Red | No Marking | 100 mA | -25 °C | 85 °C | 16.1 mm | Panel Mount, Front | 1500000 Cycles | On-Mom | IP40 | 200000 Cycles | SPDT | 24 V | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | 30 V | ||
SCHURTER Inc. 3-102-620 | Anti-Vandal, Illuminated | Silver | LED, Red | No Marking | 10 A | -25 °C | 85 °C | 16.1 mm | Panel Mount, Front | 1500000 Cycles | 250 V | On-Mom | IP40 | 50000 Cycles | SPDT | 24 V | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | ||
SCHURTER Inc. 3-102-627 | Anti-Vandal, Illuminated | Silver | LED, Yellow | No Marking | 100 mA | -25 °C | 85 °C | 16.1 mm | Panel Mount, Front | 1500000 Cycles | On-Mom | IP40 | 200000 Cycles | SPDT | 24 V | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | 30 V | ||
SCHURTER Inc. 3-102-640 | Anti-Vandal, Illuminated | Clear | Blue, LED | No Marking | Ceramic Actuator | 100 mA | -25 °C | 85 °C | 16.1 mm | Panel Mount, Front | 1500000 Cycles | On-Mom | IP40 | 200000 Cycles | SPDT | 24 V | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.80 | |
Description
General part information
3-102 Series

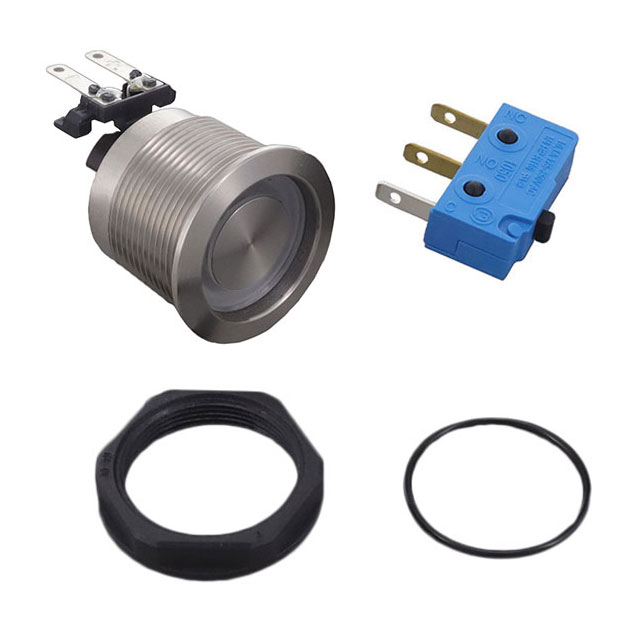

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
