621-025-368-050

Active

EDAC Inc.

621 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

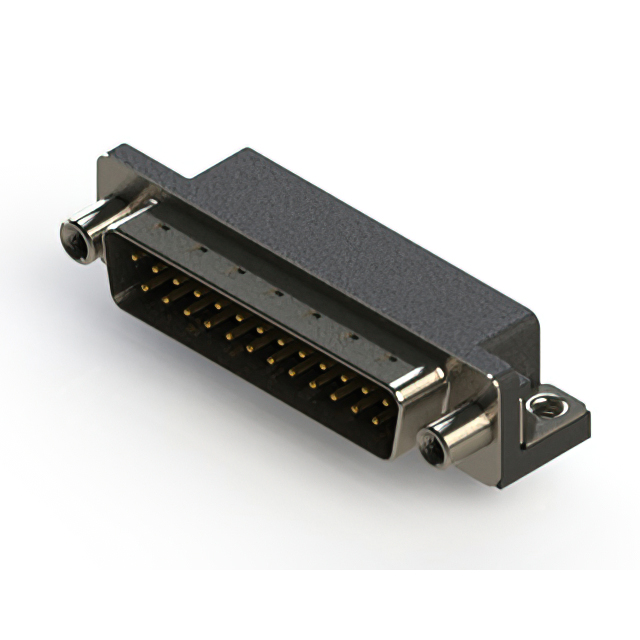

621-025-368-050

Active

EDAC Inc.

621 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	621-025-368-050

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Mounting Brackets, Grounding Indents, Filter
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

621-025 Series

...

Part	Color	Contact Type	Backset Spacing	Backset Spacing	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Termination	Current Rating (Amps)	Connector Style	Flange Feature	Connector Type	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Shell Material, Finish	Features	Number of Rows	Contact Finish Thickness
EDAC Inc. 621-025-360-046	Black	Signal	8.08 mm	0.318 "	Copper Alloy	B DB	3	UL94 V-0	15 µin	0.38 µm	Board Edge Right Angle Through Hole	Solder	3 A	D-Sub	Female Screwlock (M3) Mating Side	Male Pins Plug	Polyester Thermoplastic	85 °C	-55 °C	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	2
EDAC Inc. 621-025-660-042	Black	Signal	8.08 mm	0.318 "	Copper Alloy	B DB	3	UL94 V-0	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	Solder	3 A	D-Sub	Housing/Shell (4-40)	Male Pins Plug	Polyester Thermoplastic	85 °C	-55 °C	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	2
EDAC Inc. 621-025-668-035	Black	Signal	8.08 mm	0.318 "	Copper Alloy	B DB	3	UL94 V-0	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	Solder	3 A	D-Sub	Housing/Shell (M3)	Male Pins Plug	Polyester Thermoplastic	85 °C	-55 °C	Gold	Nickel Plated Steel	Board Lock Filter Grounding Indents Mounting Brackets Shielded	2
EDAC Inc. 621-025-368-540	Black	Signal	8.08 mm	0.318 "	Copper Alloy	B DB	3	UL94 V-0	15 µin	0.38 µm	Board Edge Right Angle Through Hole	Solder	3 A	D-Sub	4-40	Male Pins Plug	Polyester Thermoplastic	125 °C	-55 °C	Gold	Nickel Plated Steel	Board Lock Filter Grounding Indents Mounting Brackets Shielded	2
EDAC Inc. 621-025-260-512	Black	Signal	8.08 mm	0.318 "	Copper Alloy	B DB	3	UL94 V-0			Board Edge Right Angle Through Hole	Solder	3 A	D-Sub	Housing/Shell (4-40)	Male Pins Plug	Polyester Thermoplastic	125 °C	-55 °C	Gold	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	2	Flash
EDAC Inc. 621-025-260-551	Black	Signal	8.08 mm	0.318 "	Copper Alloy	B DB	3	UL94 V-0			Board Edge Right Angle Through Hole	Solder	3 A	D-Sub	Housing/Shell (Unthreaded)	Male Pins Plug	Polyester Thermoplastic	125 °C	-55 °C	Gold	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	2	Flash
EDAC Inc. 621-025-368-050	Black	Signal	8.08 mm	0.318 "	Copper Alloy	B DB	3	UL94 V-0	15 µin	0.38 µm	Board Edge Right Angle Through Hole	Solder	3 A	D-Sub	4-40	Male Pins Plug	Polyester Thermoplastic	85 °C	-55 °C	Gold	Nickel Plated Steel	Filter Grounding Indents Mounting Brackets Shielded	2
EDAC Inc. 621-025-268-516	Black	Signal	8.08 mm	0.318 "	Copper Alloy	B DB	3	UL94 V-0			Board Edge Right Angle Through Hole	Solder	3 A	D-Sub	Female Screwlock (M3) Mating Side	Male Pins Plug	Polyester Thermoplastic	125 °C	-55 °C	Gold	Nickel Plated Steel	Filter Grounding Indents Mounting Brackets Shielded	2	Flash
EDAC Inc. 621-025-368-513	Black	Signal	8.08 mm	0.318 "	Copper Alloy	B DB	3	UL94 V-0	15 µin	0.38 µm	Board Edge Right Angle Through Hole	Solder	3 A	D-Sub	Female Screwlock (4-40) Mating Side	Male Pins Plug	Polyester Thermoplastic	125 °C	-55 °C	Gold	Nickel Plated Steel	Filter Grounding Indents Mounting Brackets Shielded	2
EDAC Inc. 621-025-260-032	Black	Signal	8.08 mm	0.318 "	Copper Alloy	B DB	3	UL94 V-0			Board Edge Right Angle Through Hole	Solder	3 A	D-Sub	Housing/Shell (4-40)	Male Pins Plug	Polyester Thermoplastic	85 °C	-55 °C	Gold	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	2	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 5.78

Description

General part information

621-025 Series

25 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources
