1-1376389-2

Active

TE Connectivity AMP Connectors

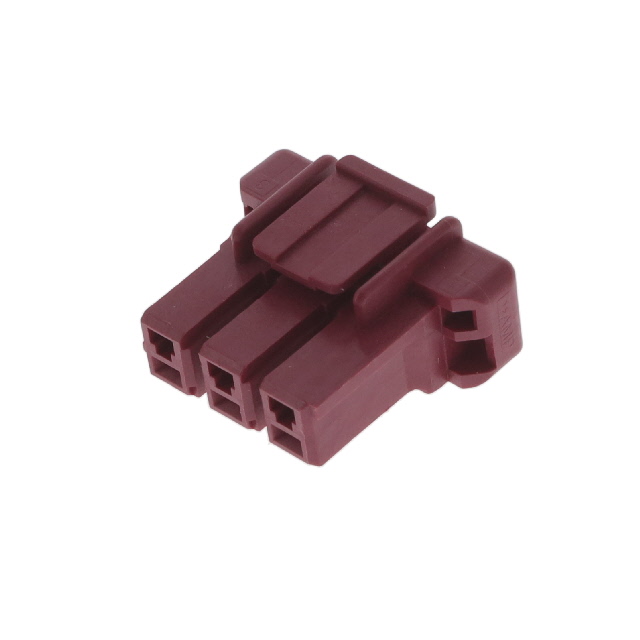

CONN PLUG HSG 3POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 3POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	1-1376389-2

Color	Red
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in

CONN PLUG HSG 3POS 5.00MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Rows	Note	Contact Type	Color	Connector Type	Contact Termination	Fastening Type	Pitch [x]	Pitch [x]	Mounting Type
TE Connectivity AMP Connectors 1-1376389-2	-30 ░C	105 ░C	Polyamide (PA66), Nylon 6/6, Glass Filled	1	Contacts Not Included	Female Socket	Red	Plug	Crimp	Latch Lock	5 mm	0.197 in	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Plug Red 0.197" (5.00mm)
