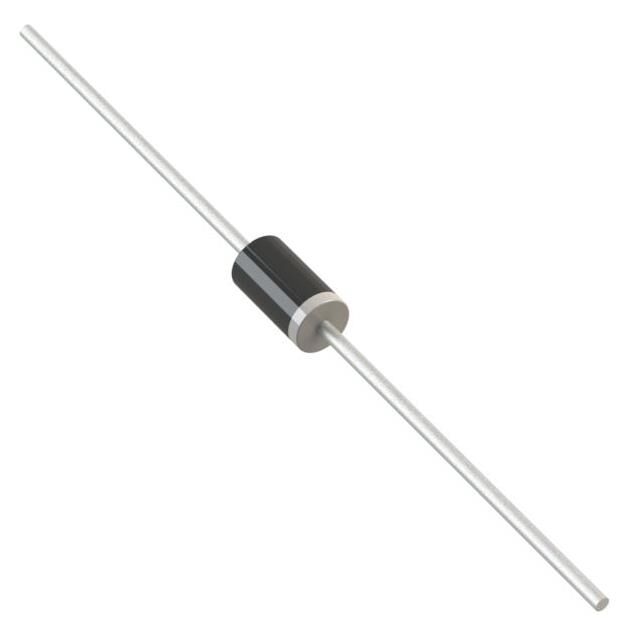

3KP150CA-HF

Active

Comchip Technology

TVS DIODE 150VWM 243VC R6

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 150VWM 243VC R6

Technical Specifications

Parameters and characteristics for this part

Specification	3KP150CA-HF

Applications	General Purpose
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	12.35 A
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	R-6, Axial
Power - Peak Pulse	3000 W
Power - Peak Pulse	3 kW
Power Line Protection	False
Supplier Device Package	R-6
Type	Zener
Voltage - Breakdown (Min) [Min]	167 V
Voltage - Clamping (Max) @ Ipp [Max]	243 V
Voltage - Reverse Standoff (Typ)	150 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

TVS DIODE 150VWM 243VC R6

Part	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Applications	Bidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Mounting Type
Comchip Technology 3KP150CA-HF	150 V	R-6	12.35 A	General Purpose	1	167 V	3000 W	3 kW	243 V		-55 °C	150 °C	Zener	R-6, Axial	Through Hole

General part information

243V Clamp 12.35A Ipp Tvs Diode Through Hole R-6
