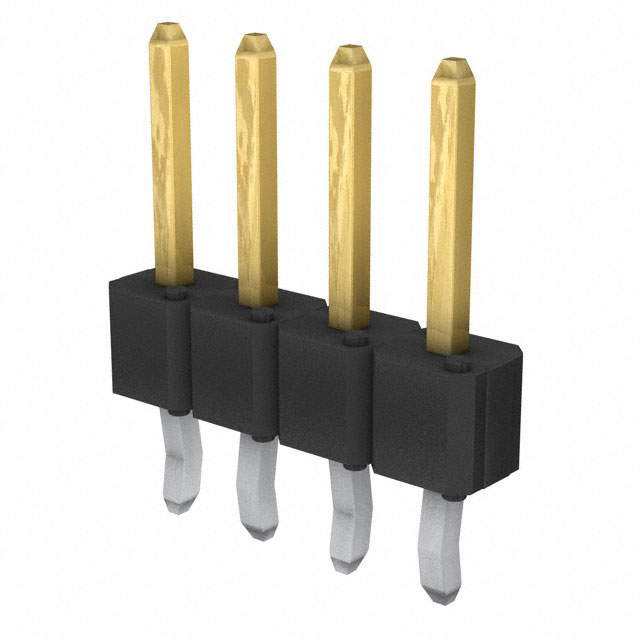

10117458-20402HLF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 4POS 2.54MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER VERT 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	10117458-20402HLF

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.45 "
Overall Contact Length	11.43 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Kinked Pin, Solder

Part	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Mating	Insulation Color	Mounting Type	Number of Positions	Contact Type	Contact Shape	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Overall Contact Length	Overall Contact Length	Fastening Type
Amphenol ICC (FCI) 10117458-20402HLF	Kinked Pin Solder	15 µin	0.38 µm	Breakaway Header	UL94 V-0	All	Gold or Gold GXT™	Black	Through Hole	4	Male Pin	Square	0.1 in	2.54 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	1	0.12 in	3.05 mm	Unshrouded	0.45 "	11.43 mm	Push-Pull
