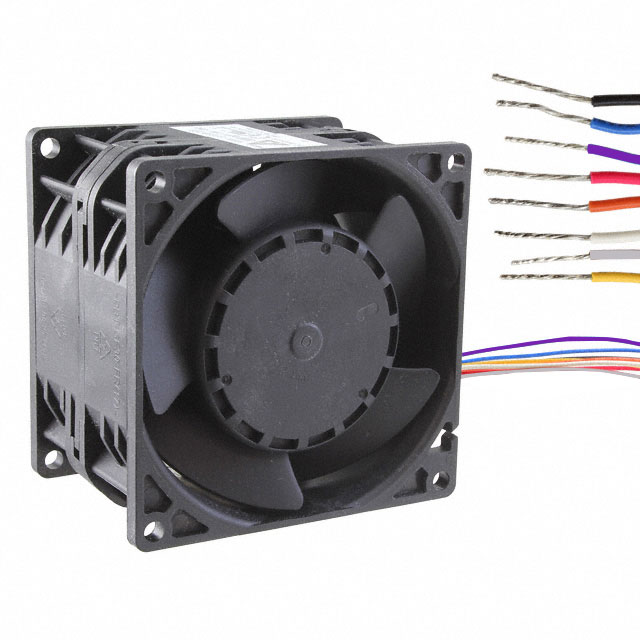

GFC0812DS-CMA8

Active

Delta Electronics

FAN AXIAL DUAL 80X56MM 12VDC

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL DUAL 80X56MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	GFC0812DS-CMA8

Air Flow	2.52 mł/min
Air Flow	90 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	2.17 A
Fan Type	Tubeaxial (Dual)
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	72.6 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	26.04 W
RPM [custom]	10500 RPM
RPM [custom]	12000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	3.827 in H2O
Static Pressure	953.3 Pa
Termination	4 Wire Leads per Fan
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	340.19 g
Weight	0.75 lb
Width [x]	56 mm

Part	Material - Blade	RPM [custom]	RPM [custom]	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Current Rating (Amps)	Static Pressure	Static Pressure	Lifetime @ Temp.	Material - Frame	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Termination	Approval Agency	Air Flow	Air Flow	Voltage - Rated	Power (Watts)	Features	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Width [x]
Delta Electronics GFC0812DW-CN	Plastic	12500 RPM	11000 RPM	76.5 dB(A)	70 °C	70 °C	-10 °C	-10 °C	Ball	6.2 A	4.47 in H2O	1113.4 Pa	70000 Hrs	Plastic	80 mm	7 V	15 V	4 Wire Leads per Fan	CE cURus TUV	4.9 mł/min	175 CFM	12 VDC	74.4 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial (Dual)	80 mm	80 mm
Delta Electronics GFC0812DS-CMA8	Plastic	12000 RPM	10500 RPM	72.6 dB(A)	60 °C	60 °C	-10 °C	-10 °C	Ball	2.17 A	3.827 in H2O	953.3 Pa	50000 Hrs	Plastic		10.8 VDC	12.6 VDC	4 Wire Leads per Fan	CE cURus TUV	2.52 mł/min	90 CFM	12 VDC	26.04 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial (Dual)	80 mm	80 mm	340.19 g	0.75 lb	56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial (Dual) 12VDC Square - 80mm L x 80mm H Ball 90.0 CFM (2.52m³/min) 4 Wire Leads per Fan
