7-345-2PP-BA

Active

CTS Thermal Management Products

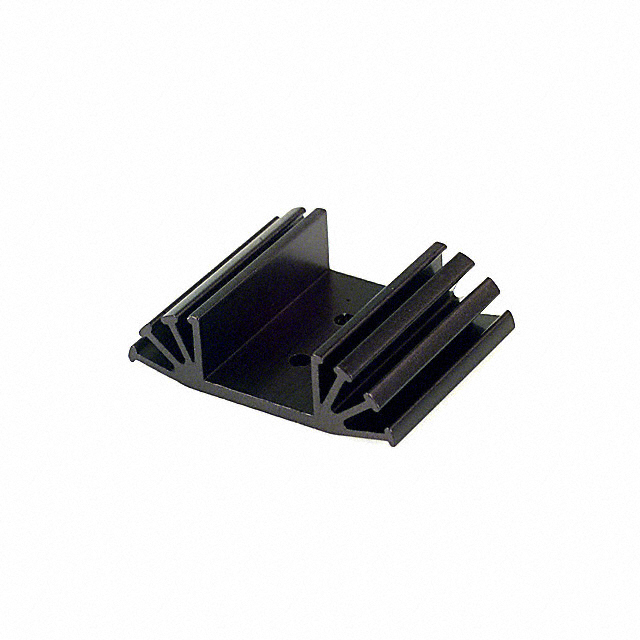

HEATSINK PWR DUAL BLACK TO-220

Search across all available documentation for this part.

Active

CTS Thermal Management Products

HEATSINK PWR DUAL BLACK TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	7-345-2PP-BA

Attachment Method	Bolt On
Fin Height	0.553 "
Fin Height	14.05 mm
Length	1.5 "
Length	38.1 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	6 W, 25 °C
Shape	Rectangular, Fins
Thermal Resistance @ Natural	4.7 °C/W
Type	Board Level
Width [x]	2 in
Width [x]	50.8 mm

HEATSINK PWR DUAL BLACK TO-220

Part	Power Dissipation @ Temperature Rise	Attachment Method	Shape	Thermal Resistance @ Natural	Type	Material	Package Cooled	Fin Height	Fin Height	Material Finish	Length	Length	Width [x]	Width [x]
CTS Thermal Management Products 7-345-2PP-BA	6 W, 25 °C	Bolt On	Rectangular, Fins	4.7 °C/W	Board Level	Aluminum	TO-220	0.553 "	14.05 mm	Black Anodized	1.5 "	38.1 mm	2 in	50.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 6.0W @ 25°C Board Level
