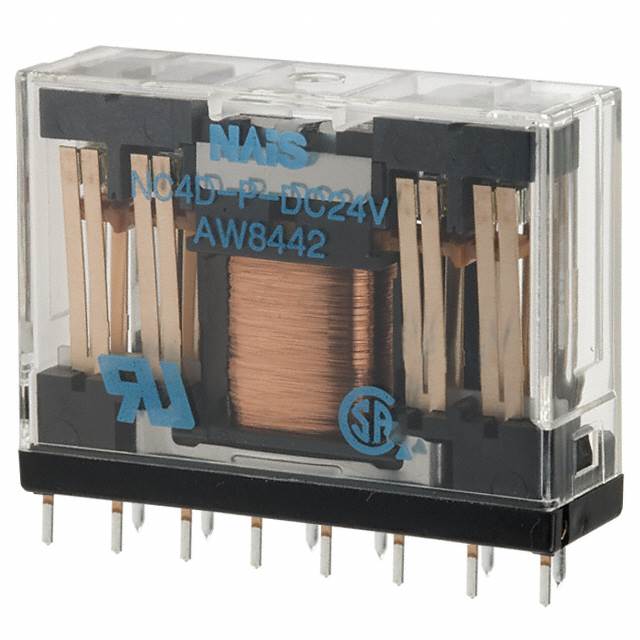

NC4D-P-DC24V

Active

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStandards Chart Datasheet +2

NC4D-P-DC24V

Active

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 24V

Deep-Dive with AI

DocumentsStandards Chart Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NC4D-P-DC24V

Approval Agency	CSA, UR
Coil Current	30 mA
Coil Resistance	800 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A
Load - Max Switching [Max]	1250 VA
Mounting Type	Through Hole
Must Operate Voltage	19.2 VDC
Must Release Voltage	2.4 VDC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC
Termination Style	PC Pin

NC4D-P Series

Part	Contact Rating (Current)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Load - Max Switching [Max]	Coil Resistance	Coil Current	Termination Style	Mounting Type	Approval Agency	Must Operate Voltage	Contact Form	Coil Voltage	Operate Time	Release Time	Relay Type	Switching Voltage	Must Release Voltage
Panasonic Electric Works NC4D-P-DC24V	5 A	Gold (Au) Silver Nickel (AgNi)	-40 °C	55 °C	Non Latching	1250 VA	800 Ohms	30 mA	PC Pin	Through Hole	CSA UR	19.2 VDC	4PDT (4 Form C)	24 VDC	20 ms	10 ms	General Purpose	250 VAC	2.4 VDC
Panasonic Electric Works NC4D-PL2-DC12V	5 A	Gold (Au) Silver Nickel (AgNi)	-40 °C	55 °C	Latching Dual Coil	1250 VA	90 Ohms	133 mA	PC Pin	Through Hole	CSA UR	9.6 VDC	4PDT (4 Form C)	12 VDC	20 ms	10 ms	General Purpose	250 VAC
Panasonic Electric Works NC4D-PL2-DC24V	5 A	Gold (Au) Silver Nickel (AgNi)	-40 °C	55 °C	Latching Dual Coil	1250 VA	360 Ohms	66.7 mA	PC Pin	Through Hole	CSA UR	19.2 VDC	4PDT (4 Form C)	24 VDC	20 ms	10 ms	General Purpose	250 VAC
Panasonic Electric Works NC4D-P-DC6V	5 A	Gold (Au) Silver Nickel (AgNi)	-40 °C	55 °C	Non Latching	1250 VA	50 Ohms	120 mA	PC Pin	Through Hole	CSA UR	4.8 VDC	4PDT (4 Form C)		20 ms	10 ms	General Purpose	250 VAC	0.6 VDC
Panasonic Electric Works NC4D-P-DC110V	5 A	Gold (Au) Silver Nickel (AgNi)	-40 °C	55 °C	Non Latching	1250 VA	13.5 kOhms	8.2 mA	PC Pin	Through Hole	CSA UR	88 VDC	4PDT (4 Form C)	110 VDC	20 ms	10 ms	General Purpose	250 VAC	11 VDC
Panasonic Electric Works NC4D-PL2-DC6V	5 A	Gold (Au) Silver Nickel (AgNi)	-40 °C	55 °C	Latching Dual Coil	1250 VA	22.5 Ohms	267 mA	PC Pin	Through Hole	CSA UR	4.8 VDC	4PDT (4 Form C)		20 ms	10 ms	General Purpose	250 VAC
Panasonic Electric Works NC4D-P-DC3V	5 A	Gold (Au) Silver Nickel (AgNi)	-40 °C	55 °C	Non Latching	1250 VA	12.5 Ohms	240 mA	PC Pin	Through Hole	CSA UR	2.4 VDC	4PDT (4 Form C)		20 ms	10 ms	General Purpose	250 VAC	0.3 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.82
		20	$ 18.51
		40	$ 16.66
		80	$ 15.73
		240	$ 14.35
		440	$ 13.42
