3/4-5-484

Active

3M (TC)

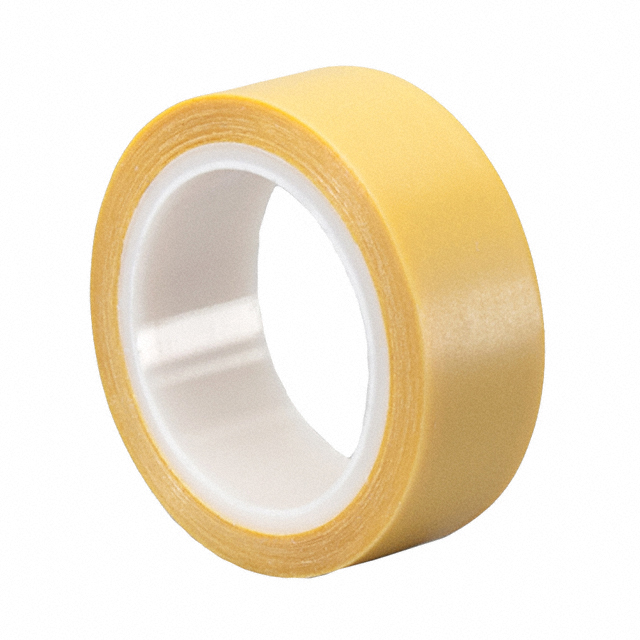

TAPE ELECTROPLATING TAN 3/4"X5YD

Search across all available documentation for this part.

Active

3M (TC)

TAPE ELECTROPLATING TAN 3/4"X5YD

Technical Specifications

Parameters and characteristics for this part

Specification	3/4-5-484

Adhesive	Rubber
Backing, Carrier	Vinyl
Color	Tan
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Electroplating
Temperature Range	170 °F
Temperature Range	77 °C
Thickness	0.183 mm
Thickness	0.0072 in
Thickness	7.2 mils
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	0.145 mm
Thickness - Backing, Carrier	0.0057 in
Thickness - Backing, Carrier	5.7 mils
Usage	Sealing, Protection, Masking
Width	0.75 in
Width	19.05 mm
Width	0.75 in

Part	Shelf Life Start	Tape Type	Usage	Adhesive	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length	Length	Length	Width	Width	Width	Backing, Carrier	Temperature Range	Temperature Range	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]
3M (TC) 484-3/4"X36YD	Date of Manufacture	Electroplating	Masking Protection Sealing	Rubber	0.183 mm	0.0072 in	7.2 mils	1.5 mils	0.0015 in	0.038 mm	18 Months	Tan	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft	0.75 in	19.05 mm	0.75 in	Vinyl	170 °F	77 °C	0.145 mm	0.0057 in	5.7 mils
3M (TC) 484-1"X36YD	Date of Manufacture	Electroplating	Masking Protection Sealing	Rubber	0.183 mm	0.0072 in	7.2 mils	1.5 mils	0.0015 in	0.038 mm	18 Months	Tan	16 °C 60 °F	27 °C 80 °F	36 yd	32.9 m	108 ft				Vinyl	170 °F	77 °C	0.145 mm	0.0057 in	5.7 mils	25.4 mm	1 in
3M (TC) 3/4-5-484	Date of Manufacture	Electroplating	Masking Protection Sealing	Rubber	0.183 mm	0.0072 in	7.2 mils	1.5 mils	0.0015 in	0.038 mm	18 Months	Tan	16 °C 60 °F	27 °C 80 °F	5 yd	4.6 m	15 ft	0.75 in	19.05 mm	0.75 in	Vinyl	170 °F	77 °C	0.145 mm	0.0057 in	5.7 mils

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.27

General part information

Electroplating Tape Rubber Adhesive Tan 0.75" (19.05mm) 3/4" X 15' (4.6m) 5 yds
