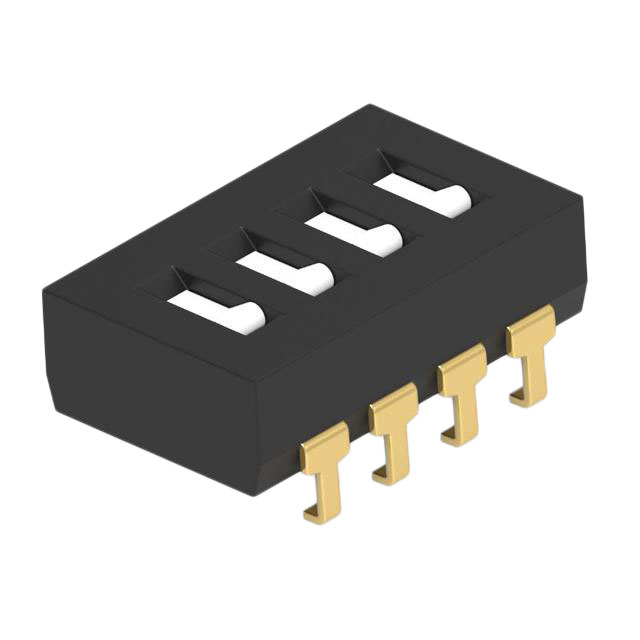

1-1825059-7

Active

TE Connectivity ALCOSWITCH Switches

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

TE Connectivity ALCOSWITCH Switches

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Mechanical Life	Number of Positions	Circuit	Features	Mounting Type	Contact Material	Actuator Type	Current Rating (Amps)	Actuator Level	Termination Style	Height Above Board	Height Above Board	Electrical Life	Contact Finish
TE Connectivity ALCOSWITCH Switches 1-1825059-7	-30 ░C	85 °C	Polyphenylene Sulfide (PPS)	0.1 in	Full	2.54 mm	24 VDC	1000 Cycles	4	SPST	Tape Seal	Surface Mount	Copper Alloy	Slide (Standard)	25 mA	Flush, Recessed	Gull Wing	0.177 in	4.5 mm	1000 Cycles	Gold
TE Connectivity ALCOSWITCH Switches 1-1825059-4									4	SPST		Surface Mount		Standard		Flush, Recessed
TE Connectivity ALCOSWITCH Switches 1-1825059-9										SPST		Surface Mount		Standard		Flush, Recessed
TE Connectivity ALCOSWITCH Switches 1-1825059-5									4	SPST		Surface Mount		Standard		Flush, Recessed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC

Technical documentation and resources

No documents available
