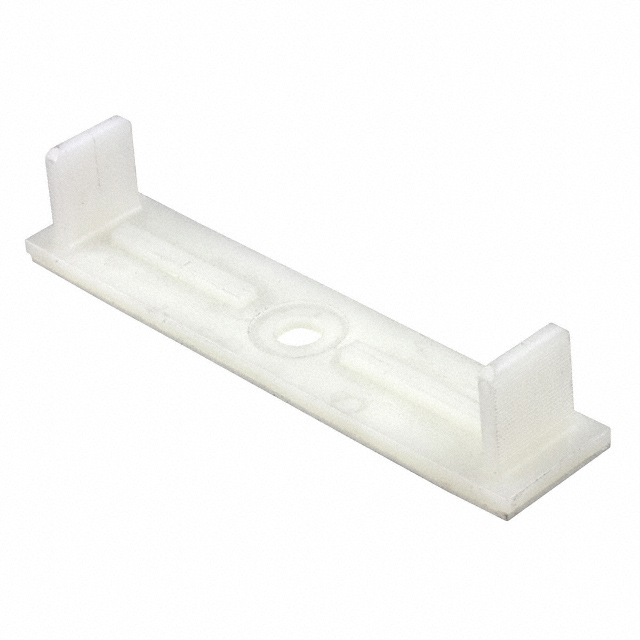

FCRCSH-21B-4A-RT

Obsolete

Essentra Access Solutions

CBL CLIP FLAT NATURAL ADHESIVE

Search across all available documentation for this part.

Obsolete

Essentra Access Solutions

CBL CLIP FLAT NATURAL ADHESIVE

Technical Specifications

Parameters and characteristics for this part

Specification	FCRCSH-21B-4A-RT

Adhesive	Acrylic Based (RMS-15)
Color	Natural
Features	Serrated with Hole
Height [z]	0.575 in
Height [z]	14.6 mm
Length	75.69 mm
Length [x]	2.98 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Adhesive
Opening Size [custom]	2.55 in
Opening Size [custom]	64.77 mm
Type	Flat, Clip
Type Attributes	Base
Width	15.88 mm
Width	0.625 in

Part	Height [z]	Height [z]	Material	Screw Size	Screw Size	Opening Size [custom]	Opening Size [custom]	Width	Width	Type Attributes	Length	Length	Mounting Type	Color	Panel Hole Size	Panel Hole Size	Features	Material Flammability Rating	Type	Length [x]	Adhesive
Essentra Access Solutions FCRCSH-19B-6	20.96 mm	0.825 in	Polyamide (PA66) Nylon 6/6	#12	M5	58.67 mm	2.31 in	15.88 mm	0.625 in	Base	2.72 "	69.09 mm	Fastener	Natural	0.218 in	5.54 mm	Serrated with Hole	UL94 V-2	Clip Flat
Essentra Access Solutions FCRCSH-21B-4A-RT	14.6 mm	0.575 in	Polyamide (PA66) Nylon 6/6			64.77 mm	2.55 in	15.88 mm	0.625 in	Base		75.69 mm	Adhesive	Natural			Serrated with Hole	UL94 V-2	Clip Flat	2.98 "	Acrylic Based (RMS-15)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Flat Natural Adhesive 2.550" (64.77mm)

Technical documentation and resources

No documents available
