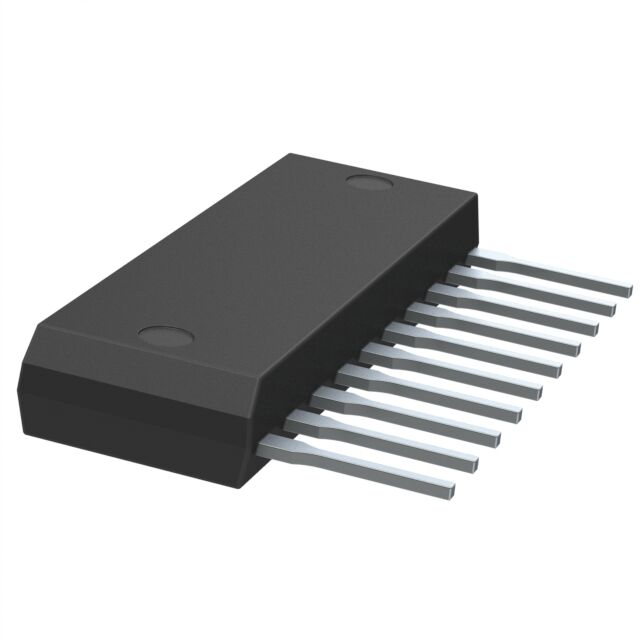

STA431A

Obsolete

Sanken Electric USA Inc.

TRANS 2NPN/2PNP 60V 3A 10SIP

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

TRANS 2NPN/2PNP 60V 3A 10SIP

Technical Specifications

Parameters and characteristics for this part

Specification	STA431A

Current - Collector (Ic) (Max) [Max]	3 A
Current - Collector Cutoff (Max) [Max]	100 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	40
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	10-SIP
Power - Max [Max]	4 W
Supplier Device Package	10-SIP
Transistor Type	2 NPN, 2 PNP
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	60 V

Part	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Operating Temperature	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Transistor Type
Sanken Electric USA Inc. STA431A	10-SIP	60 V	100 µA	40	Through Hole	3 A	4 W	150 °C	10-SIP	1 V	2 NPN 2 PNP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor Array 2 NPN, 2 PNP (H-Bridge) 60V 3A 4W Through Hole 10-SIP
