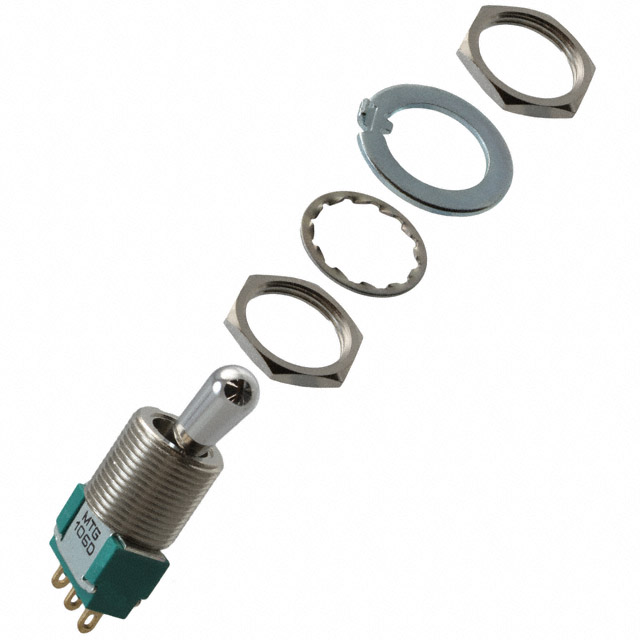

MTG106D

Active

TE Connectivity Raychem Cable Protection

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MTG106D

Actuator Length [x]	11.5 mm
Actuator Material	Copper Alloy, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	80000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	11.94 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Switch Function	Current Rating (Amps)	Features	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Illumination	Actuator Type	Voltage Rating - AC	Actuator Length [x]	Termination Style	Voltage Rating - DC	Circuit	Electrical Life	Panel Cutout Dimensions [diameter]
TE Connectivity Raychem Cable Protection MTG106F	On-Mom	4 A 6 A	Epoxy Sealed Terminals	15/32-32	-20 C	80 C	Brass Nickel Plated	Non-Illuminated	Standard Round	125 V	11.5 mm	Solder Lug	28 V	SPDT
TE Connectivity Raychem Cable Protection MTG106D	On-On	4 A 6 A	Epoxy Sealed Terminals	15/32-32	-20 C	80 C	Copper Alloy Chrome Plated	Non-Illuminated	Standard Round	125 V	11.5 mm	Solder Lug	28 V	SPDT	80000 Cycles	11.94 mm
TE Connectivity Raychem Cable Protection MTG106H	On-Off-Mom	4 A 6 A	Epoxy Sealed Terminals	15/32-32	-20 C	80 C	Copper Alloy Chrome Plated	Non-Illuminated	Standard Round	125 V	11.5 mm	Solder Lug	28 V	SPDT	60000 Cycles	11.94 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
