X9C503PI

Active

Renesas Electronics Corporation

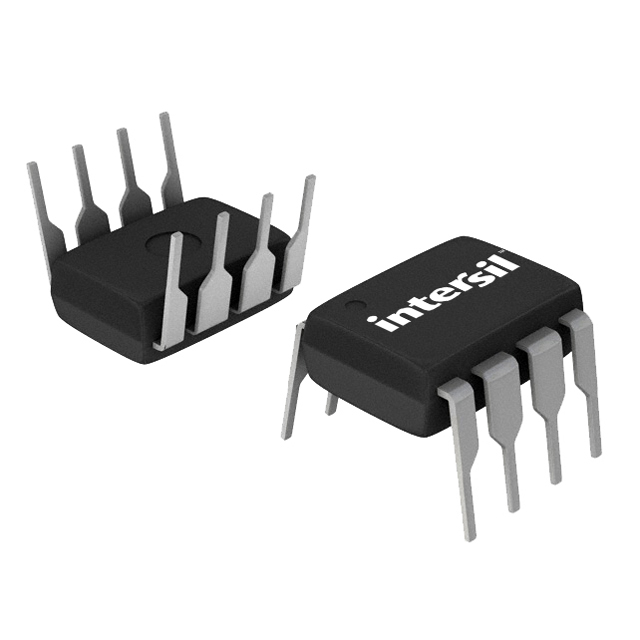

IC DGTL POT 50KOHM 100TAP 8DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

X9C503PI

Active

Renesas Electronics Corporation

IC DGTL POT 50KOHM 100TAP 8DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

X9C503 Series

Digital Potentiometer 50k Ohm 1 Circuit 100 Taps Up/Down (U/D, INC, CS) Interface 8-PDIP

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X9C503PI	X9C503 Series

Configuration	Potentiometer	Potentiometer
Interface	Up/Down	Up/Down
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Circuits	1	1
Number of Taps	100	100
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Package / Case	0.3 in	0.3 in
Package / Case	8-DIP	8-DIP, 8-SOIC
Package / Case	7.62 mm	7.62 mm
Package / Case	-	3.9 mm
Package / Case	-	0.154 in
Resistance - Wiper (Ohms) (Typ)	40 Ohms	40 Ohms
Resistance (Ohms)	50 kOhms	50 kOhms
Supplier Device Package	8-PDIP	8-PDIP, 8-SOIC
Taper	Linear	Linear
Temperature Coefficient (Typ)	300 ppm/°C	300 ppm/°C
Tolerance	20 %	20 %

X9C503 Series

IC DGTL POT 50KOHM 100TAP 8DIP

Part	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Number of Taps	Resistance (Ohms)	Mounting Type	Resistance - Wiper (Ohms) (Typ)	Taper	Tolerance	Memory Type	Interface	Configuration	Temperature Coefficient (Typ)	Supplier Device Package	Package / Case	Package / Case	Package / Case	Package / Case [y]	Package / Case [x]
Renesas Electronics Corporation X9C503PI	1	85 °C	-40 °C	100	50 kOhms	Through Hole	40 Ohms	Linear	20 %	Non-Volatile	Up/Down	Potentiometer	300 ppm/°C	8-PDIP	0.3 in	8-DIP	7.62 mm
Renesas Electronics Corporation X9C503SIT1	1	85 °C	-40 °C	100	50 kOhms	Surface Mount	40 Ohms	Linear	20 %	Non-Volatile	Up/Down	Potentiometer	300 ppm/°C	8-SOIC		8-SOIC		3.9 mm	0.154 in
Renesas Electronics Corporation X9C503SIZ	1	85 °C	-40 °C	100	50 kOhms	Surface Mount	40 Ohms	Linear	20 %	Non-Volatile	Up/Down	Potentiometer	300 ppm/°C	8-SOIC		8-SOIC		3.9 mm	0.154 in
Renesas Electronics Corporation X9C503SIZT1	1	85 °C	-40 °C	100	50 kOhms	Surface Mount	40 Ohms	Linear	20 %	Non-Volatile	Up/Down	Potentiometer	300 ppm/°C	8-SOIC		8-SOIC		3.9 mm	0.154 in
Renesas Electronics Corporation X9C503SZ	1	70 °C	0 °C	100	50 kOhms	Surface Mount	40 Ohms	Linear	20 %	Non-Volatile	Up/Down	Potentiometer	300 ppm/°C	8-SOIC		8-SOIC		3.9 mm	0.154 in
Renesas Electronics Corporation X9C503SI	1	85 °C	-40 °C	100	50 kOhms	Surface Mount	40 Ohms	Linear	20 %	Non-Volatile	Up/Down	Potentiometer	300 ppm/°C	8-SOIC		8-SOIC		3.9 mm	0.154 in
Renesas Electronics Corporation X9C503P	1	70 °C	0 °C	100	50 kOhms	Through Hole	40 Ohms	Linear	20 %	Non-Volatile	Up/Down	Potentiometer	300 ppm/°C	8-PDIP	0.3 in	8-DIP	7.62 mm
Renesas Electronics Corporation X9C503SZT1	1	70 °C	0 °C	100	50 kOhms	Surface Mount	40 Ohms	Linear	20 %	Non-Volatile	Up/Down	Potentiometer	300 ppm/°C	8-SOIC		8-SOIC		3.9 mm	0.154 in
