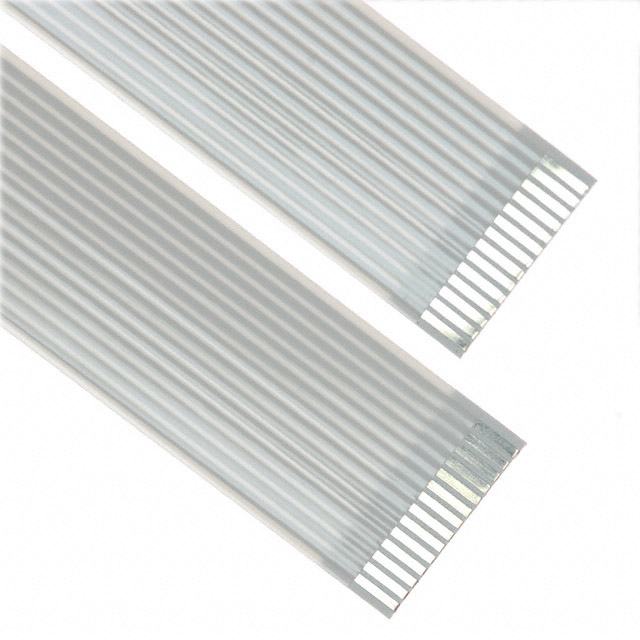

100R14-51B

Active

Parlex USA LLC

CABLE FFC/FPC 14POS 1MM 2"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 14POS 1MM 2"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position FFC, FPC Cable 0.039" (1.00mm) 2.000" (50.80mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	100R14-51B	100R14 Series

Cable Type	FPC, FFC	FPC, FFC
Length	50.8 mm	50.8 - 457.2 mm
Length	2 in	2 - 18 in
Length	-	152 - 635 mm
Length	-	5.984 - 25 in
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	14	14
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 14POS 1MM 2"

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Cable Type	Number of Conductors	Termination Style	Length	Length	Pitch [x]	Pitch [x]	Length [x]	Length [x]
Parlex USA LLC 100R14-51B	0.14 in	3.56 mm	FFC, FPC	14	Backers on Both Sides, Top on Both Sides	50.8 mm	2 in	0.039 in	1 mm
Parlex USA LLC 100R14-203B	0.14 in	3.56 mm	FFC, FPC	14	Backers on Both Sides, Top on Both Sides			0.039 in	1 mm	203 mm	7.992 in
Parlex USA LLC 100R14-76B	0.14 in	3.56 mm	FFC, FPC	14	Backers on Both Sides, Top on Both Sides	76.2 mm	3 in	0.039 in	1 mm
Parlex USA LLC 100R14-152B	0.14 in	3.56 mm	FFC, FPC	14	Backers on Both Sides, Top on Both Sides			0.039 in	1 mm	152 mm	5.984 in
Parlex USA LLC 100R14-254B	0.14 in	3.56 mm	FFC, FPC	14	Backers on Both Sides, Top on Both Sides	254 mm		0.039 in	1 mm		10 in
Parlex USA LLC 100R14-457B	0.14 in	3.56 mm	FFC, FPC	14	Backers on Both Sides, Top on Both Sides	457.2 mm	18 "	0.039 in	1 mm
Parlex USA LLC 100R14-635B	0.14 in	3.56 mm	FFC, FPC	14	Backers on Both Sides, Top on Both Sides			0.039 in	1 mm	635 mm	25 "
Parlex USA LLC 100R14-305B	0.14 in	3.56 mm	FFC, FPC	14	Backers on Both Sides, Top on Both Sides	304.8 mm		0.039 in	1 mm		12 in
Parlex USA LLC 100R14-102B	0.14 in	3.56 mm	FFC, FPC	14	Backers on Both Sides, Top on Both Sides	101.6 mm	4 in	0.039 in	1 mm
Parlex USA LLC 100R14-127B	0.14 in	3.56 mm	FFC, FPC	14	Backers on Both Sides, Top on Both Sides	127 mm	5 in	0.039 in	1 mm
