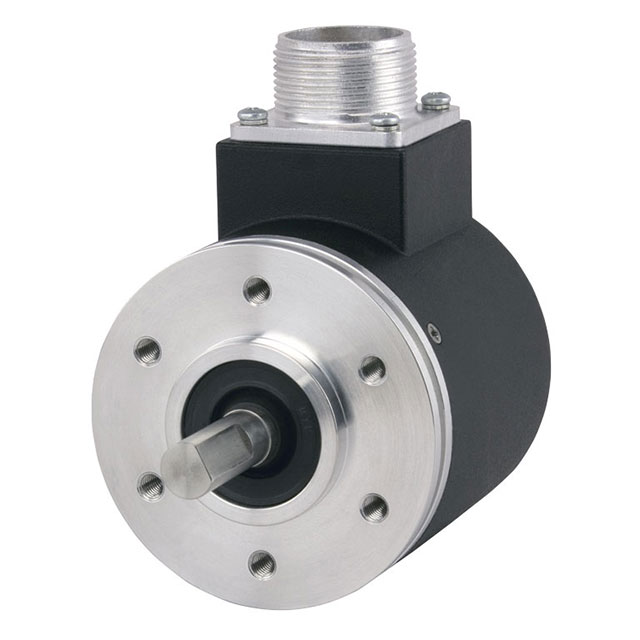

25SP-10MC-B1000B5OC-SMX-T6-S4

Active

Encoder Products Company

ENCODER ROTARY PROG 2.5" DIA 3/8

Search across all available documentation for this part.

Active

Encoder Products Company

ENCODER ROTARY PROG 2.5" DIA 3/8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 699.00

General part information

ENCODER ROTARY PROG 2.5" DIA 3/8

Technical documentation and resources

Specification	25SP-10MC-B1000B5OC-SMX-T6-S4	25SP-10 Series

Actuator Type	Shaft	Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Incremental	Incremental
Mounting Type	Servo Mount	Servo Mount, Flange Mount
Orientation	User Selectable	User Selectable
Output Type	Open Collector	Open Collector
Pulses per Revolution	Programmable	Programmable
Rotational Life (Cycles Min) [Min]	1.5B	1.5B
Termination Style	PC Pin	PC Pin
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	4.75 V	4.75 V

Part	Termination Style	Rotational Life (Cycles Min) [Min]	Orientation	Mounting Type	Actuator Type	Pulses per Revolution	Voltage - Supply [Max]	Voltage - Supply [Min]	Encoder Type	Output Type
Encoder Products Company 25SP-10MC-B1000B5OC-SMX-T6-S4	PC Pin	1.5B	User Selectable	Servo Mount	Shaft	Programmable	30 VDC	4.75 V	Incremental	Open Collector
Encoder Products Company 25SP-10MG-B1000B5OC-SMX-T6-S4	PC Pin	1.5B	User Selectable	Servo Mount	Shaft	Programmable	30 VDC	4.75 V	Incremental	Open Collector
Encoder Products Company 25SP-10MA-B1000B5OC-SMX-T6-S4	PC Pin	1.5B	User Selectable	Flange Mount	Shaft	Programmable	30 VDC	4.75 V	Incremental	Open Collector
