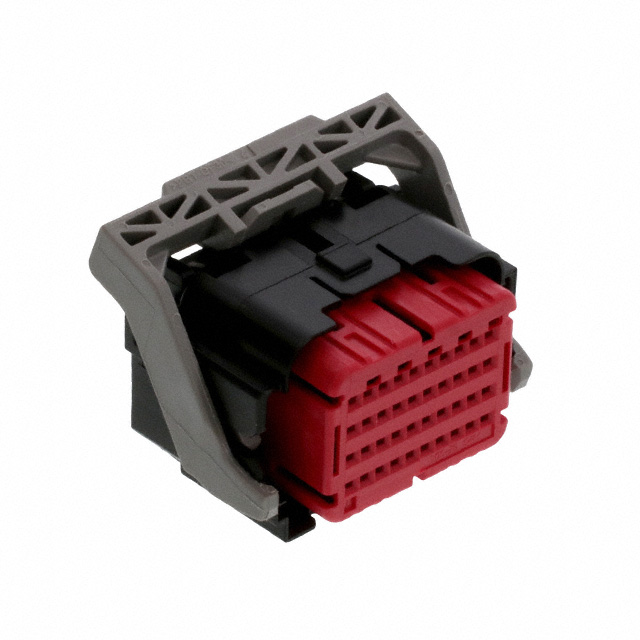

1438618-1

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 40POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 40POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1438618-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Lever Lock
Features	Terminal Position Assurance (TPA), IP67
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	40
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	0.167 in
Row Spacing	4.24 mm

Part	Number of Positions	Contact Termination	Note	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Color	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Mounting Type	Features	Connector Type	Fastening Type
TE Connectivity Raychem Cable Protection 1438618-1	40	Crimp	Contacts Not Included	2.54 mm	0.1 in	0.167 in	4.24 mm	Black	Polyamide (PA66) Nylon 6/6 Glass Filled	125 °C	-40 °C	Female Socket	Free Hanging (In-Line)	IP67 Terminal Position Assurance (TPA)	Plug	Lever Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
