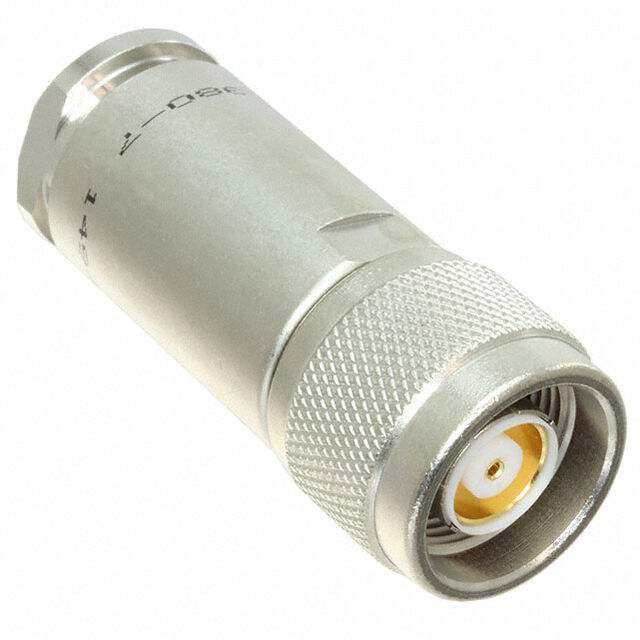

PL380-7

Active

Cinch Connectivity Solutions Trompeter

CONN TRN PLUG STR SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRN PLUG STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PL380-7

Body Finish	Nickel
Body Material	Brass
Cable Group	TRC-50-2, TRC-75-2
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TRN, Twinaxial/Triaxial
Connector Type	Female Socket (Concentric), Plug
Contact Termination	Solder
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Wrench Clamp
Voltage Rating	500 V

CONN TRN PLUG STR SOLDER

Part	Connector Type	Voltage Rating	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Center Contact Material	Body Finish	Frequency - Max [Max]	Number of Ports	Mounting Type	Cable Group	Contact Termination	Housing Color	Shield Termination	Impedance	Body Material
Cinch Connectivity Solutions Trompeter PL380-7	Female Socket (Concentric), Plug	500 V	Gold	-65 ░C	165 °C	TRN, Twinaxial/Triaxial	Beryllium Copper	Nickel	500 MHz	1	Free Hanging (In-Line)	TRC-50-2, TRC-75-2	Solder	Silver	Wrench Clamp	Non-Constant	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRN, Twinaxial/Triaxial Connector Plug, Female Socket (Concentric) Non-Constant Free Hanging (In-Line) Solder
