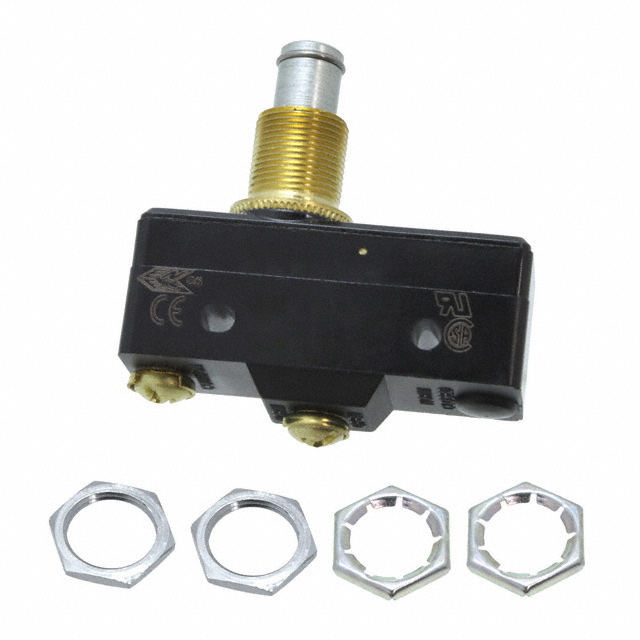

YA-2RQ1-A2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 20A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 20A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YA-2RQ1-A2	YA-2RQ Series

Actuator Type	Overtravel Plunger	Overtravel Plunger, Cross Roller Plunger
Circuit	SPST-NO	SPST-NO
Current Rating (Amps)	500 mA, 20 A	20 - 500 mA
Differential Travel	0.007 in	0.007 in
Differential Travel	0.18 mm	0.18 mm
Features	Steel Plunger	Steel Plunger
Mechanical Life	20000000 Cycles	20000000 Cycles
Operating Force [Max]	624 gf	624 gf
Operating Force [Min]	397 gf	397 gf
Operating Position	0.859 in	0.859 - 1.942 in
Operating Position	21.8 mm	21.8 - 49.3 mm
Operating Temperature [Max]	85 °C	85 - 121 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overtravel	5.6 mm	5.6 mm
Overtravel	0.219 in	0.219 in
Pretravel	0.05 in	0.05 in
Pretravel	1.27 mm	1.27 mm
Release Force	283 gf	255 - 283 gf
Switch Function	Off-Mom	Off-Mom
Termination Style	Screw Terminal	Screw Terminal, Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	125 VDC	125 VDC

SWITCH SNAP ACT SPST-NO 20A 125V

Part	Voltage Rating - AC	Operating Force [Min]	Operating Force [Max]	Voltage Rating - DC	Differential Travel	Differential Travel	Release Force	Features	Current Rating (Amps)	Operating Position	Operating Position	Mechanical Life	Overtravel	Overtravel	Switch Function	Actuator Type	Circuit	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel
Honeywell Sensing and Productivity Solutions YA-2RQ1-A2	125 V	397 gf	624 gf	125 VDC	0.007 in	0.18 mm	283 gf	Steel Plunger	20 A, 500 mA	0.859 in	21.8 mm	20000000 Cycles	5.6 mm	0.219 in	Off-Mom	Overtravel Plunger	SPST-NO	Screw Terminal	85 °C	-55 °C	0.05 in	1.27 mm
Honeywell Sensing and Productivity Solutions YA-2RQ81245-D6	125 V	397 gf	624 gf	125 VDC	0.007 in	0.18 mm	255 gf		20 A, 500 mA	1.942 in	49.3 mm	20000000 Cycles	5.6 mm	0.219 in	Off-Mom	Cross Roller Plunger	SPST-NO	Quick Connect - 0.250" (6.3mm)	121 °C	-55 °C	0.05 in	1.27 mm
Honeywell Sensing and Productivity Solutions YA-2RQ1250-A2	125 V	397 gf	624 gf	125 VDC	0.007 in	0.18 mm	283 gf	Steel Plunger	20 A, 500 mA	0.859 in	21.8 mm	20000000 Cycles	5.6 mm	0.219 in	Off-Mom	Overtravel Plunger	SPST-NO	Screw Terminal	121 °C	-55 °C	0.05 in	1.27 mm
Honeywell Sensing and Productivity Solutions YA-2RQ1243-D6	125 V	397 gf	624 gf	125 VDC	0.007 in	0.18 mm	283 gf	Steel Plunger	20 A, 500 mA	0.859 in	21.8 mm	20000000 Cycles	5.6 mm	0.219 in	Off-Mom	Overtravel Plunger	SPST-NO	Quick Connect - 0.250" (6.3mm)	121 °C	-55 °C	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NO Panel Mount
