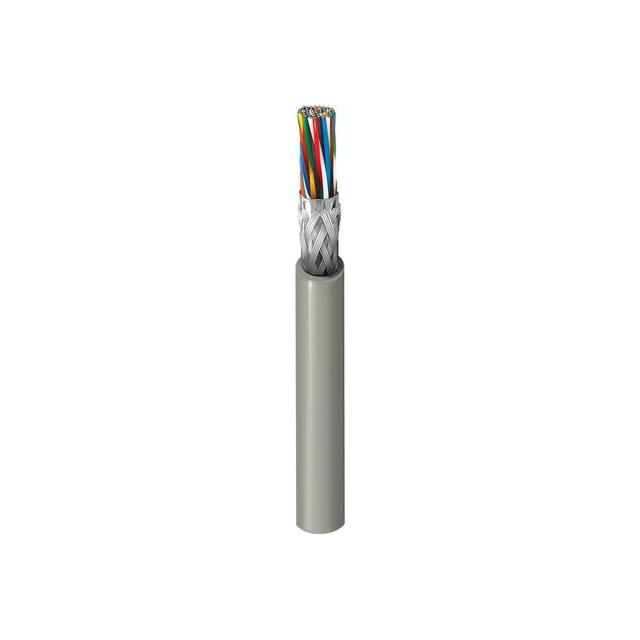

8125 060100

Active

Belden Inc.

MULTI-PAIR 50COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 50COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8125 060100

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	16.05 mm
Jacket (Insulation) Diameter [diameter]	0.632 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.27 mm
Jacket (Insulation) Thickness	0.05 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	50
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Shield Coverage	Features	Shield Type	Length [x]	Length [x]	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket Color	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Number of Conductors	Length	Length
Belden Inc. 8125 060100	24 AWG	16.05 mm	0.632 in	UL Style 2919	Multi-Pair	32 AWG	7	Computer	65 % 100 %	Drain Wire	Braid Foil	30.5 m	100 ft	Foam Polyethylene (FPE)	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	Chrome	Copper Tinned	1.27 mm	0.05 in	Aluminum Copper Tinned	50
Belden Inc. 8125 0601000	24 AWG	16.05 mm	0.632 in	UL Style 2919	Multi-Pair	32 AWG	7	Computer	65 % 100 %	Drain Wire	Braid Foil			Foam Polyethylene (FPE)	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	Chrome	Copper Tinned	1.27 mm	0.05 in	Aluminum Copper Tinned	50	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 36.66

General part information

50 (25 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
