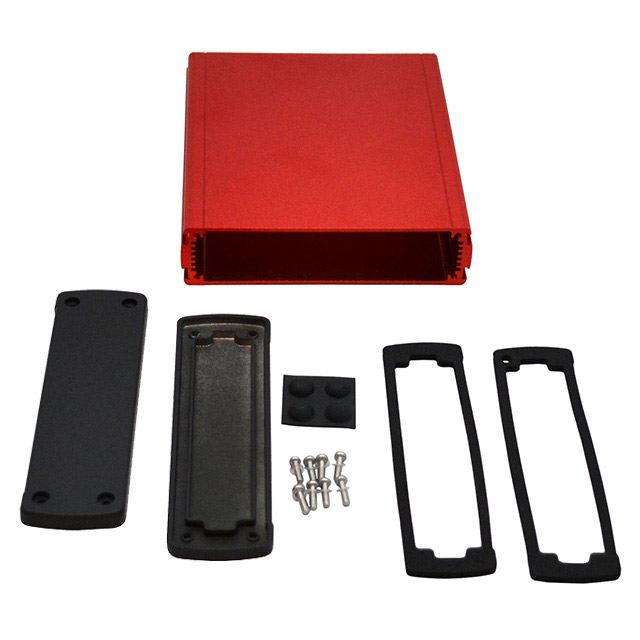

EXN-23361-RD

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 41.61 MM, 129 MM, 146.6 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 41.61 MM, 129 MM, 146.6 MM, IP66

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EXN-23361-RD	EXN-23361 Series

Area (L x W)	248 cm²	248 cm²
Area (L x W)	38.4 in²	38.4 in²
Color	Black, Red	Black, Gold, Red, Clear
Container Type	Box	Box
Design	End Panel(s)	End Panel(s)
Features	Card Guides, Sealing Gaskets	Card Guides, Sealing Gaskets
Height [z]	41.6 mm	41.6 mm
Height [z]	1.638 in	1.638 in
Material	Metal, Aluminum	Metal, Aluminum, Polycarbonate Panels, Aluminum with Plastic
Material Flammability Rating	-	UL94 V-0
Ratings	IP66	IP66
Size / Dimension [x]	6.654 "	6.654 "
Size / Dimension [x]	169 mm	169 mm
Size / Dimension [y]	146.6 mm	146.6 mm
Size / Dimension [y]	5.772 "	5.772 "
Thickness	0.091 in	0.091 in
Thickness	2.3 mm	2.3 mm
Weight	453.59 g	390.09 - 453.59 g
Weight	1 lbs	0.86 - 1 lbs

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 41.61 MM, 129 MM, 146.6 MM, IP66

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Weight	Weight	Color	Ratings	Area (L x W)	Area (L x W)	Material	Container Type	Thickness	Thickness	Height [z]	Height [z]	Features	Material Flammability Rating
BUD INDUSTRIES EXN-23361-GD	146.6 mm	6.654 "	5.772 "	169 mm	End Panel(s)	453.59 g	1 lbs	Black, Gold	IP66	248 cm²	38.4 in²	Aluminum, Metal	Box	0.091 in	2.3 mm	41.6 mm	1.638 in	Card Guides, Sealing Gaskets
BUD INDUSTRIES EXN-23361-RD	146.6 mm	6.654 "	5.772 "	169 mm	End Panel(s)	453.59 g	1 lbs	Black, Red	IP66	248 cm²	38.4 in²	Aluminum, Metal	Box	0.091 in	2.3 mm	41.6 mm	1.638 in	Card Guides, Sealing Gaskets
BUD INDUSTRIES EXN-23361-GDP	146.6 mm	6.654 "	5.772 "	169 mm	End Panel(s)	390.09 g	0.86 lb	Clear, Gold	IP66	248 cm²	38.4 in²	Aluminum with Plastic, Metal, Polycarbonate Panels	Box	0.091 in	2.3 mm	41.6 mm	1.638 in	Card Guides, Sealing Gaskets	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Box Metal, Aluminum Black, Red End Panel(s) 6.654" L x 5.772" W (169.00mm x 146.60mm) X 1.638" (41.60mm)
