Q-0104D00012.5M

Active

Amphenol Custom Cable

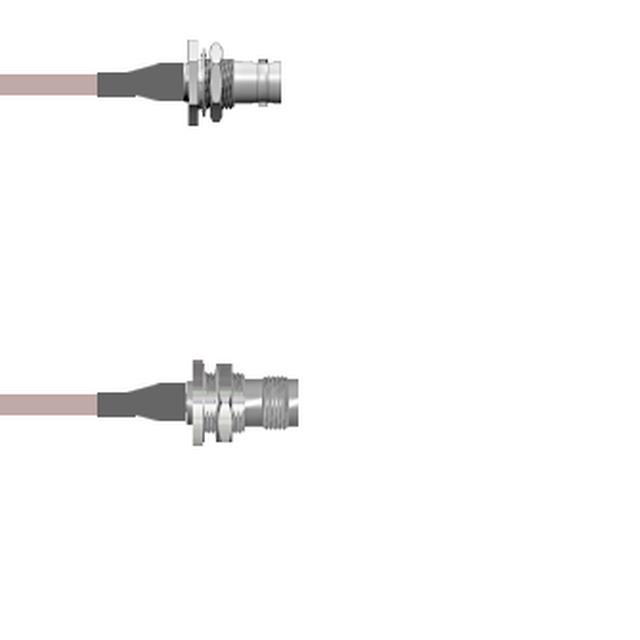

CBL ASSY BNC-TNC JACK-JACK 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0104D00012.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-JACK 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0104D00012.5M	Q-0104D0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	TNC Jack	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount	Panel Mount
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	8.2 '	3.3 - 9 ft
Length	98.4 in	3 - 108 "
Length	2.5 m	1 - 1200 mm
Length	-	457.2 mm
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to TNC	BNC to TNC

Q-0104D0 Series

CBL ASSY BNC-TNC JACK-JACK 24"

Part	Overall Impedance	Style	Color	Length	Length	1st Contact Gender	Frequency - Max [Max]	Cable Type	Features	2nd Connector	2nd Connector Mounting Feature	2nd Contact Gender	1st Connector Mounting Type	1st Connector Mounting Feature	2nd Connector Mounting Type	1st Connector	Length
Amphenol Custom Cable Q-0104D0001024i	50 Ohms	BNC to TNC	Copper	24 "	609.6 mm	Female	4 GHz	RG-178	Shielded	TNC Jack	Bulkhead - Front Side Nut	Female	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	BNC Jack
Amphenol Custom Cable Q-0104D0001001M	50 Ohms	BNC to TNC	Copper	39.4 in	1 m	Female	4 GHz	RG-178	Shielded	TNC Jack	Bulkhead - Front Side Nut	Female	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	BNC Jack	3.3 ft
Amphenol Custom Cable Q-0104D0001012i	50 Ohms	BNC to TNC	Copper	12 "	304.8 mm	Female	4 GHz	RG-178	Shielded	TNC Jack	Bulkhead - Front Side Nut	Female	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	BNC Jack
Amphenol Custom Cable Q-0104D00011.5M	50 Ohms	BNC to TNC	Copper	59.1 in	1.5 m	Female	4 GHz	RG-178	Shielded	TNC Jack	Bulkhead - Front Side Nut	Female	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	BNC Jack	4.9 ft
Amphenol Custom Cable Q-0104D00010.5M	50 Ohms	BNC to TNC	Copper	19.69 "	50 cm	Female	4 GHz	RG-178	Shielded	TNC Jack	Bulkhead - Front Side Nut	Female	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	BNC Jack
Amphenol Custom Cable Q-0104D0001006i	50 Ohms	BNC to TNC	Copper	6 in	152.4 mm	Female	4 GHz	RG-178	Shielded	TNC Jack	Bulkhead - Front Side Nut	Female	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	BNC Jack
Amphenol Custom Cable Q-0104D0001009i	50 Ohms	BNC to TNC	Copper	9 "	228.6 mm	Female	4 GHz	RG-178	Shielded	TNC Jack	Bulkhead - Front Side Nut	Female	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	BNC Jack
Amphenol Custom Cable Q-0104D0001003i	50 Ohms	BNC to TNC	Copper	3 in	76.2 mm	Female	4 GHz	RG-178	Shielded	TNC Jack	Bulkhead - Front Side Nut	Female	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	BNC Jack
Amphenol Custom Cable Q-0104D0001084i	50 Ohms	BNC to TNC	Copper	84 in	2.1 m	Female	4 GHz	RG-178	Shielded	TNC Jack	Bulkhead - Front Side Nut	Female	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	BNC Jack	7 ft
Amphenol Custom Cable Q-0104D00012.5M	50 Ohms	BNC to TNC	Copper	98.4 in	2.5 m	Female	4 GHz	RG-178	Shielded	TNC Jack	Bulkhead - Front Side Nut	Female	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	BNC Jack	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 69.83
		25	$ 65.00
		50	$ 60.17
		100	$ 56.03
		250	$ 52.58

Description

General part information

Q-0104D0 Series

Cable Assembly Coaxial BNC to TNC RG-178 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
