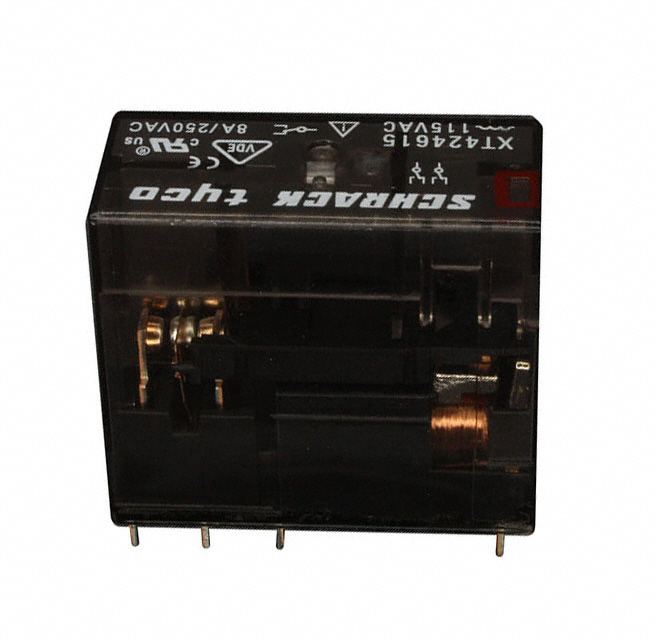

XT424615

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 8A 115V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 8A 115V

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Coil Voltage	Switching Voltage [Max]	Mounting Type	Contact Form	Termination Style	Approval Agency	Coil Current	Contact Material	Coil Insulation	Release Time	Contact Rating (Current)	Load - Max Switching	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Must Operate Voltage	Relay Type	Coil Type
TE Connectivity Potter & Brumfield Relays XT424730	9 ms	230 VAC	400 VAC	Socketable	DPDT (2 Form C)	Plug In	cURus VDE	16.7 mA	Silver Nickel (AgNi)	Class F	6 ms	8 A	3200 VA	34.5 VAC	-40 °C	70 °C	32500 Ohms	172.5 VAC	General Purpose	Non Latching
TE Connectivity Potter & Brumfield Relays 1887203-3	10 ms	24 VAC	400 VAC	Through Hole	DPDT (2 Form C)	PC Pin	cURus VDE	16.7 mA	Silver Nickel (AgNi)	Class F	5 ms	8 A	3200 VA	3.6 VAC	-40 °C	70 °C	350 Ohms	19.2 VAC	General Purpose	Non Latching
TE Connectivity Potter & Brumfield Relays XT424615	9 ms	115 VAC	400 VAC	Socketable	DPDT (2 Form C)	Plug In	cURus VDE	16.7 mA	Silver Nickel (AgNi)	Class F	6 ms	8 A	3200 VA	17.3 VAC	-40 °C	70 °C	8.1 kOhms	86.3 VAC	General Purpose	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 115VAC Coil Socketable
