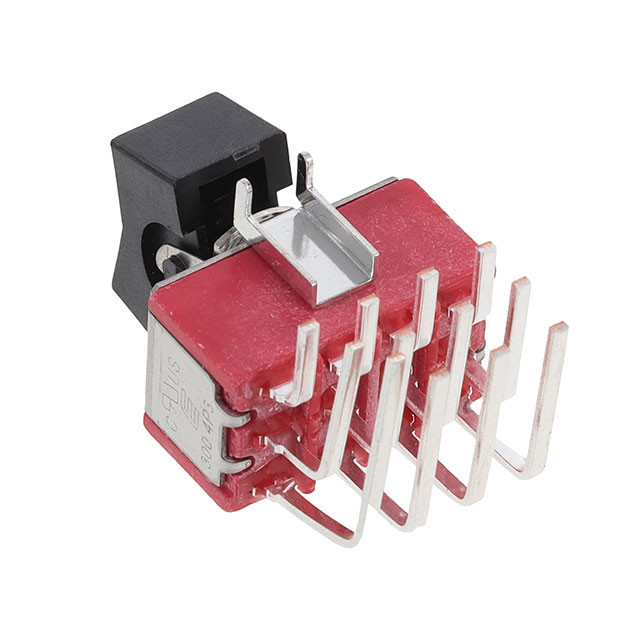

3004P3J1BLKM7QE

Active

E-Switch

SWITCH ROCKER 4PDT 5A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER 4PDT 5A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	3004P3J1BLKM7QE

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Circuit	4PDT
Color - Actuator/Cap	Black
Current Rating (Amps)	5 A
Electrical Life	40000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

SWITCH ROCKER 4PDT 5A 120V

Part	Actuator Type	Voltage Rating - DC	Termination Style	Features	Circuit	Electrical Life	Mounting Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Switch Function	Voltage Rating - AC	Color - Actuator/Cap
E-Switch 3004P3J1BLKM7QE	Concave (Standard V)	28 V	PC Pin	Epoxy Sealed Terminals	4PDT	40000 Cycles	Right Angle, Through Hole, Vertical	5 A	-30 ░C	85 °C	No Marking	On-Off-On	120 V	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch 4PDT 5A (AC/DC) 120 V Through Hole, Right Angle, Vertical
