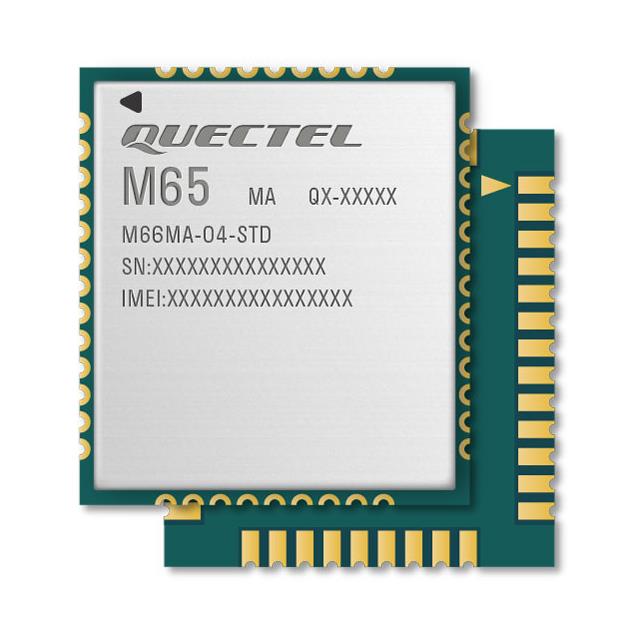

M65MA-04-STD
Quectel
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Search across all available documentation for this part.
M65MA-04-STD
Quectel
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M65MA-04-STD |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 1.2 mA |
| Data Rate | 85.6 kbps |
| Frequency | 1900 MHz, 1800 MHz, 900 MHz, 850 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 44-SMD Module |
| Protocol | GSM, GPRS |
| RF Family/Standard | Cellular |
| Sensitivity | -108 dBm |
| Serial Interfaces | UART |
| Utilized IC / Part | RDA8955L |
| Voltage - Supply [Max] | 4.25 V |
| Voltage - Supply [Min] | 3.45 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.80 | |
| 10 | $ 9.90 | |||
| 25 | $ 9.00 | |||
| 100 | $ 8.10 | |||
| Digi-Reel® | 1 | $ 10.80 | ||
| 10 | $ 9.90 | |||
| 25 | $ 9.00 | |||
| 100 | $ 8.10 | |||
| Tape & Reel (TR) | 250 | $ 5.40 | ||
Description
General part information
M65 Series
Cellular GSM, GPRS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
No documents available
