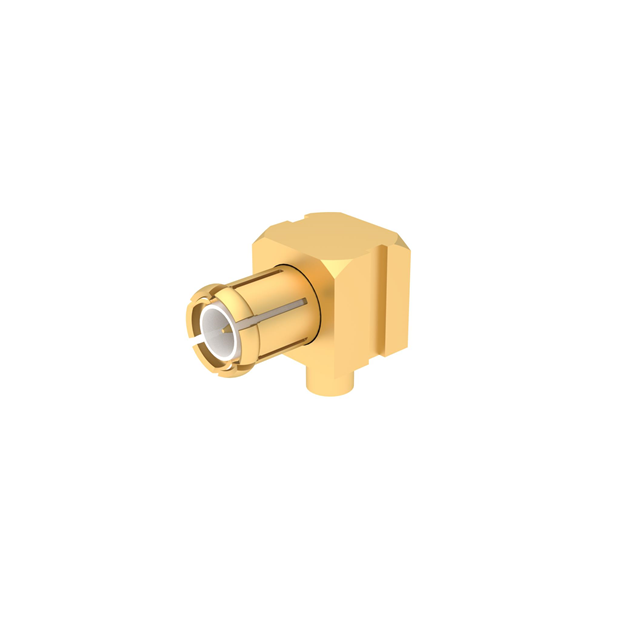

R113151000

Active

Radiall USA, Inc.

MCX / RIGHT ANGLE PLUG SOLDER TY

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MCX / RIGHT ANGLE PLUG SOLDER TY

Technical Specifications

Parameters and characteristics for this part

Specification	R113151000

Body Finish	Gold
Body Material	Brass
Cable Group	Semi Rigid
Cable Group	0.047 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	175 VDC

Part	Fastening Type	Dielectric Material	Body Material	Shield Termination	Housing Color	Frequency - Max [Max]	Center Contact Plating	Mounting Type	Connector Type	Center Contact Material	Connector Style	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Body Finish	Mating Cycles	Voltage Rating	Number of Ports	Impedance	Cable Group
Radiall USA, Inc. R113153000W	Snap-On	Polytetrafluoroethylene (PTFE)	Brass	Solder	Gold	6000 MHz	Gold	Free Hanging (In-Line) Right Angle	Male Pin Plug	Beryllium Copper	MCX	RG-405 (.085" Semi Rigid)	115 °C	-55 °C	Solder	Gold	500	250 VDC	1	50 Ohms
Radiall USA, Inc. R113151000W	Snap-On	Polytetrafluoroethylene (PTFE)	Brass	Solder	Gold	6000 MHz	Gold	Free Hanging (In-Line) Right Angle	Male Pin Plug	Brass	MCX	Semi Rigid	115 °C	-55 °C	Solder	Gold	500	175 VDC	1	50 Ohms	0.047 in
Radiall USA, Inc. R113153000	Snap-On	Polytetrafluoroethylene (PTFE)	Brass	Solder	Gold	6000 MHz	Gold	Free Hanging (In-Line) Right Angle	Male Pin Plug	Beryllium Copper	MCX	RG-405 (.085" Semi Rigid)	115 °C	-55 °C	Solder	Gold	500	335 V	1	50 Ohms
Radiall USA, Inc. R113151000	Snap-On	Polytetrafluoroethylene (PTFE)	Brass	Solder	Gold	6000 MHz	Gold	Free Hanging (In-Line) Right Angle	Male Pin Plug	Brass	MCX	Semi Rigid	115 °C	-55 °C	Solder	Gold	500	175 VDC	1	50 Ohms	0.047 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
