780-M15-213R051

Active

MH Connectors

CONN D-SUB HD RCPT 15POS PNL MNT

Search across all available documentation for this part.

Active

MH Connectors

CONN D-SUB HD RCPT 15POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	780-M15-213R051

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

Part	Features	Connector Type	Connector Style	Number of Positions	Current Rating (Amps)	Shell Material, Finish	Number of Rows	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Dielectric Material	Flange Feature	Contact Type	Contact Material	Material Flammability Rating	Ingress Protection	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Finish Thickness	Termination	Mounting Type
MH Connectors 780-M15-103L011	Grounding Indents	Male Pins Plug	D-Sub High Density	15	3 A	Nickel Plated Steel	3	Gold	24 AWG	28 AWG	Polybutylene Terephthalate (PBT) Glass Filled	Cable Side	Signal	Brass	UL94 V-0	IP67 - Dust Tight Waterproof	DE E	1	High Density	105 ░C	-55 °C	Black	Flash
MH Connectors 780-M15-103L001	Grounding Indents	Male Pins Plug	D-Sub High Density	15	3 A	Nickel Plated Steel	3	Gold	24 AWG	28 AWG	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal	Brass	UL94 V-0	IP67 - Dust Tight Waterproof	DE E	1	High Density	105 ░C	-55 °C	Black	Flash
MH Connectors 780-M15-213R051		Receptacle Female Sockets	D-Sub High Density	15	3 A	Nickel Plated Steel	3	Gold			Polyamide (PA6T) Nylon 6T	4-40 Board Side	Signal	Brass	UL94 V-0	IP67 - Dust Tight Waterproof	DE E	1	High Density	105 ░C	-55 °C	Black	Flash	Solder	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

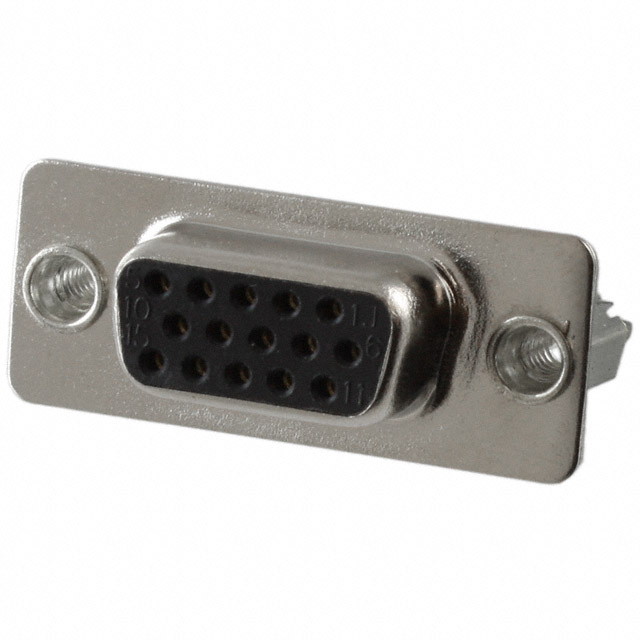

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
