SC04-11EWA

Active

Kingbright

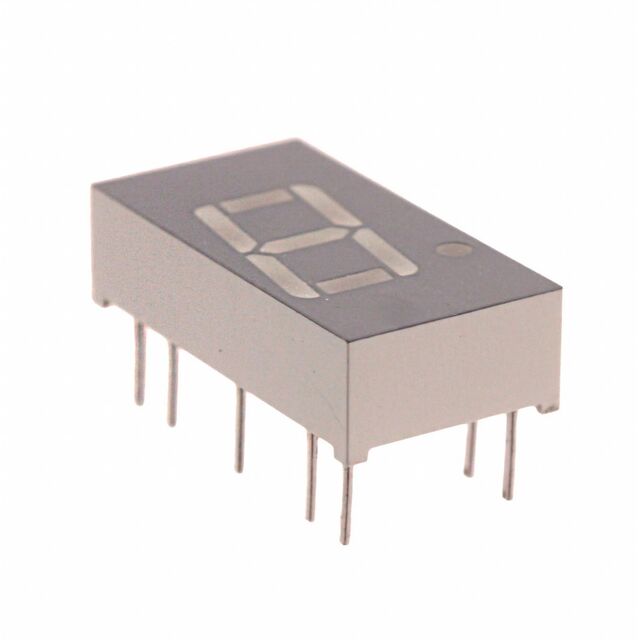

DISPLAY 7-SEG 0.4" SGL RED 14DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC04-11EWA

Active

Kingbright

DISPLAY 7-SEG 0.4" SGL RED 14DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC04-11EWA

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Millicandela Rating	5.6 mcd
Number of Characters [custom]	1
Package / Case	0.295 in
Package / Case	7.5 mm
Package / Case	14-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.738 "
Size / Dimension [x]	18.75 mm
Size / Dimension [y]	0.386 in
Size / Dimension [y]	9.8 mm
Size / Dimension [z]	0.2 in
Size / Dimension [z]	0.2 "
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	627 nm

SC04-11 Series

Part	Package / Case	Package / Case	Package / Case	Number of Characters [custom]	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size [custom]	Common Pin	Voltage - Forward (Vf) (Typ)	Display Type	Current - Test	Color	Power Dissipation (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Package / Case
Kingbright SC04-11CGKWA	14-DIP	0.295 in 10 Leads	7.5 mm	1	30 mcd	10.16 mm	0.4 in	Common Cathode	2.1 V	7-Segment	20 mA	Green	75 mw	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm
Kingbright SC04-11SRWA	14-DIP		0.295 in	1	30 mcd	10.16 mm	0.4 in	Common Cathode	1.85 V	7-Segment	20 mA	Red	75 mw	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	660 nm	7.5 mm
Kingbright SC04-11GWA	14-DIP		0.295 in	1	8.6 mcd	10.16 mm	0.4 in	Common Cathode	2.2 V	7-Segment	20 mA	Green	62.5 mW	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	565 nm	7.5 mm
Kingbright SC04-11EWA	14-DIP		0.295 in	1	5.6 mcd	10.16 mm	0.4 in	Common Cathode	2 V	7-Segment	20 mA	Red	75 mw	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	627 nm	7.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.25
		27	$ 1.50
		108	$ 1.16
		513	$ 1.05
		1026	$ 0.90
		2025	$ 0.85
		5022	$ 0.83
		10017	$ 0.82

Description

General part information

SC04-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.295", 7.50mm)
