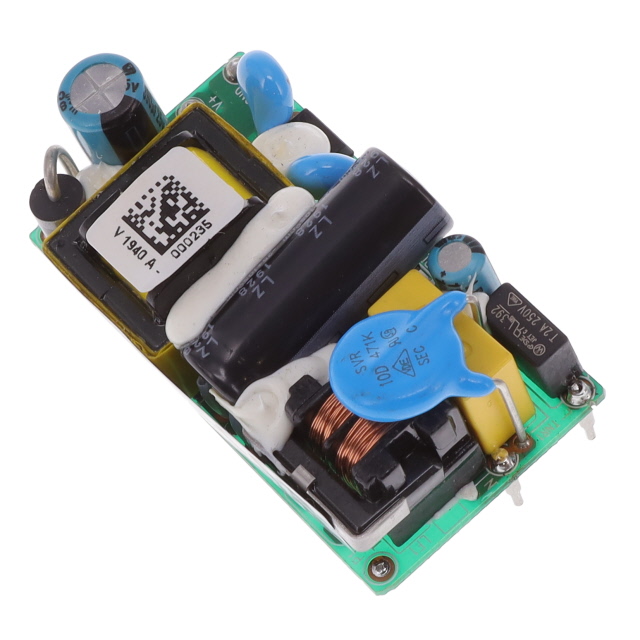

GB10S15P01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 15V 12W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 15V 12W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC POWER SUPPLY SINGLE-OUT 15V 0.8A 12W 7-PIN

Part	Approval Agency	Features	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Minimum Load Required	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Power (Watts)	Efficiency	Type	Voltage - Isolation	Standard Number
SL POWER / Advanced Energy GB10S15K01	CE, cURus, UL	Universal Input	ITE (Commercial), Medical	240 VAC	100 VAC	15 V	1	40.6 mm	1.6 "	3.38 in	85.9 mm	25.4 mm	1 "		-25 °C	70 °C	Chassis Mount	12 W	88 %	Open Frame	4000 V
SL POWER / Advanced Energy GB10S15P01	CE, cURus, DEMKO	Universal Input	ITE (Commercial), Medical	264 VAC	90 VAC	15 V	1	27.3 mm	1.07 in	2.05 "	52 mm	18 mm	0.71 in		-25 °C	70 °C	Chassis Mount	12 W	88 %	Open Frame	4000 V	60601-1, 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	250	$ 12.36

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
