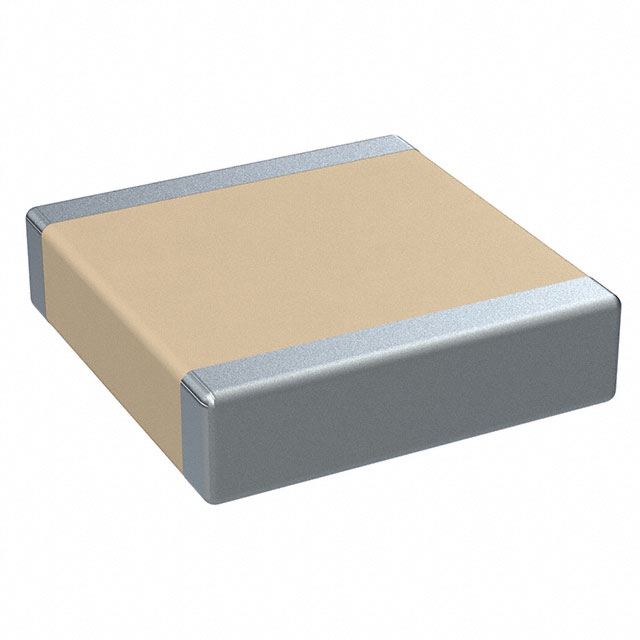

C3040H683JBGACT050

Active

KEMET

CAP CER 0.068UF 630V NP0 3040

Search across all available documentation for this part.

Active

KEMET

CAP CER 0.068UF 630V NP0 3040

Technical Specifications

Parameters and characteristics for this part

Specification	C3040H683JBGACT050

Applications	Downhole
Capacitance	0.068 µF
Features	Low ESL, High Temperature, High Voltage
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	3040
Package / Case	7610 Metric
Size / Dimension [x]	7.6 mm
Size / Dimension [x]	0.299 in
Size / Dimension [y]	10.2 mm
Size / Dimension [y]	0.402 in
Temperature Coefficient	NP0, C0G
Thickness (Max) [Max]	0.106 "
Thickness (Max) [Max]	2.7 mm
Tolerance	5 %
Voltage - Rated	630 V

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Applications	Voltage - Rated	Voltage - Rated	Package / Case	Package / Case	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Tolerance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
KEMET C3040H393KGGWCT050	0.106 "	2.7 mm	0.039 µF	Downhole	2 kV	2000 V	3040	7610 Metric	C0G NP0	10.2 mm	0.402 in	7.6 mm	0.299 in	High Temperature High Voltage Low ESL	10 %	MLCC Surface Mount	-55 °C	200 °C
KEMET C3040H103JGGACT050	0.106 "	2.7 mm	10000 pF	Downhole	2 kV	2000 V	3040	7610 Metric	C0G NP0	10.2 mm	0.402 in	7.6 mm	0.299 in	High Temperature High Voltage Low ESL	5 %	MLCC Surface Mount	-55 °C	200 °C
KEMET C3040H104JCGACT050	0.106 "	2.7 mm	100000 pF	Downhole		500 V	3040	7610 Metric	C0G NP0	10.2 mm	0.402 in	7.6 mm	0.299 in	High Temperature High Voltage Low ESL	5 %	MLCC Surface Mount	-55 °C	200 °C
KEMET C3040H683JBGACT050	0.106 "	2.7 mm	0.068 µF	Downhole		630 V	3040	7610 Metric	C0G NP0	10.2 mm	0.402 in	7.6 mm	0.299 in	High Temperature High Voltage Low ESL	5 %	MLCC Surface Mount	-55 °C	200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 22.97
	Digi-Reel®	1	$ 22.97
	Tape & Reel (TR)	50	$ 18.74

General part information

0.068 µF ±5% 630V Ceramic Capacitor C0G, NP0 3040 (7610 Metric)
