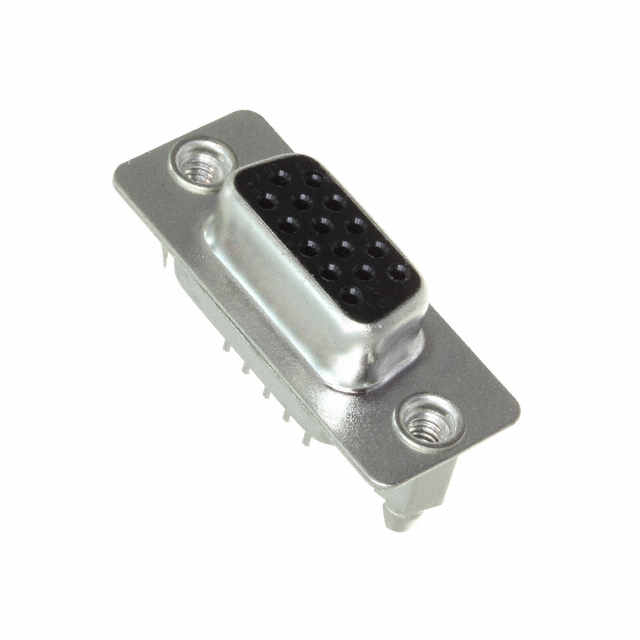

L77HDEH15SOL2RM5

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 15P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77HDEH15SOL2RM5

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 15P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77HDEH15SOL2RM5

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	250 VDC

L77HDEH15 Series

Part	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Termination	Contact Form	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Number of Positions	Mounting Type	Dielectric Material	Contact Material	Contact Type	Number of Rows	Voltage Rating	Connector Style	Contact Finish	Flange Feature	Color	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L77HDEH15SOL2RM832	Flash	155 °C	-55 °C	UL94 V-0	Solder	Stamped	Receptacle Female Sockets	DE E	1	High Density	3 A	15	Through Hole	Thermoplastic Glass Filled	Phosphor Bronze	Signal	3	250 VDC	D-Sub High Density	Gold	Board Side (4-40) Mating Side Female Screwlock (4-40)
Amphenol ICC (Commercial Products) L77HDEH15SOL2RM8	Flash	105 ░C	-55 °C	UL94 V-0	Solder	Stamped	Receptacle Female Sockets	DE E	1	High Density	3 A	15	Through Hole	Thermoplastic Glass Filled	Brass	Signal	3	250 VDC	D-Sub High Density	Gold	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black
Amphenol ICC (Commercial Products) L77HDEH15SVF	Flash	155 °C	-55 °C	UL94 V-0		Stamped	Receptacle Female Sockets	DE E	1	High Density	3 A	15		Thermoplastic Glass Filled	Phosphor Bronze	Signal	3	250 VDC	D-Sub High Density	Gold	Cable Side (4-40) Mating Side Female Screwlock (4-40)
Amphenol ICC (Commercial Products) L77HDEH15SOL2	Flash	105 ░C	-55 °C	UL94 V-0	Solder	Stamped	Receptacle Female Sockets	DE E	1	High Density	3 A	15	Through Hole	Thermoplastic Glass Filled	Brass	Signal	3	250 VDC	D-Sub High Density	Gold	4-40 Board Side	Black
Amphenol ICC (Commercial Products) L77HDEH15SOL2RM8C309		105 ░C	-55 °C	UL94 V-0	Solder	Stamped	Receptacle Female Sockets	DE E	1	High Density	3 A	15	Through Hole	Thermoplastic Glass Filled	Brass	Signal	3	250 VDC	D-Sub High Density	Gold	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L77HDEH15SOL2RM5	Flash	105 ░C	-55 °C	UL94 V-0	Solder	Stamped	Receptacle Female Sockets	DE E	1	High Density	3 A	15	Through Hole	Thermoplastic Glass Filled	Brass	Signal	3	250 VDC	D-Sub High Density	Gold	4-40 Board Side	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.45
		10	$ 1.87
		25	$ 1.68
		40	$ 1.59
		80	$ 1.48
		90	$ 1.35
		230	$ 1.32
		270	$ 1.25
		440	$ 1.23
		450	$ 1.20
		945	$ 1.14
		990	$ 1.14
		2400	$ 1.03
		2430	$ 1.07

Description

General part information

L77HDEH15 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
