155212-5303-RB

Active

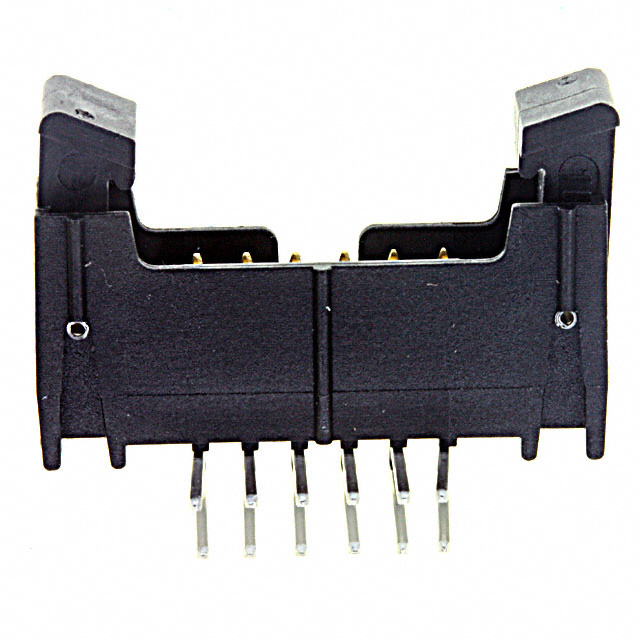

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 12 CONTACTS, THROUGH HOLE RIGHT ANGLE, 1552 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

155212-5303-RB

Active

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 12 CONTACTS, THROUGH HOLE RIGHT ANGLE, 1552 SERIES

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.81
		10	$ 4.35
		100	$ 3.81
		500	$ 3.53
Newark	Pack of 100	1	$ 8.55

Description

General part information

155212 Series

Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155212-5303-RB	155212 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	10 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.25 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	3.94 mm	2.84 - 3.94 mm
Contact Length - Post	0.155 "	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	6.28 mm	6.28 - 10.8 mm
Insulation Height	0.247 in	0.247 - 0.425 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Surface Mount, Through Hole, Right Angle
Number of Positions	12	12
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155212 Series

CONN HEADER SMD 12POS 2MM

Part	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Termination	Fastening Type	Shrouding	Contact Finish - Mating	Style	Contact Material	Features	Current Rating (Amps)	Material Flammability Rating	Contact Shape	Mounting Type	Contact Type	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Length - Post	Contact Length - Post
3M 155212-2200-RB	Tin	0.079 in	2 mm	Black	0.079 in	2 mm	12	Solder	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Gold	Board to Cable/Wire	Copper Alloy	Keying Slot	1.25 A	UL94 V-0	Square	Surface Mount	Male Pin	0.15 in	3.81 mm	105 ░C	-55 °C	All	30 Áin	0.76 Ám	2	0.425 in	10.8 mm	200 µin	5.08 µm	Header
3M 155212-5302-RA	Tin	0.079 in	2 mm	Black	0.079 in	2 mm	12	Solder	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Gold	Board to Cable/Wire	Copper Alloy	Keying Slot	1.25 A	UL94 V-0	Square	Through Hole, Right Angle	Male Pin	0.15 in	3.81 mm	105 ░C	-55 °C	All	10 çin	0.25 çm	2	0.247 in	6.28 mm	200 µin	5.08 µm	Header	2.84 mm	0.112 in
3M 155212-5203-RB	Tin	0.079 in	2 mm	Black	0.079 in	2 mm	12	Solder	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Gold	Board to Cable/Wire	Copper Alloy	Keying Slot	1.25 A	UL94 V-0	Square	Through Hole, Right Angle	Male Pin	0.15 in	3.81 mm	105 ░C	-55 °C	All	30 Áin	0.76 Ám	2	0.247 in	6.28 mm	200 µin	5.08 µm	Header	3.94 mm	0.155 "
3M 155212-5302-RB	Tin	0.079 in	2 mm	Black	0.079 in	2 mm	12	Solder	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Gold	Board to Cable/Wire	Copper Alloy	Keying Slot	1.25 A	UL94 V-0	Square	Through Hole, Right Angle	Male Pin	0.15 in	3.81 mm	105 ░C	-55 °C	All	30 Áin	0.76 Ám	2	0.247 in	6.28 mm	200 µin	5.08 µm	Header	2.84 mm	0.112 in
3M 155212-5303-RB	Tin	0.079 in	2 mm	Black	0.079 in	2 mm	12	Solder	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Gold	Board to Cable/Wire	Copper Alloy	Keying Slot	1.25 A	UL94 V-0	Square	Through Hole, Right Angle	Male Pin	0.15 in	3.81 mm	105 ░C	-55 °C	All	30 Áin	0.76 Ám	2	0.247 in	6.28 mm	200 µin	5.08 µm	Header	3.94 mm	0.155 "
3M 155212-2300-RB	Tin	0.079 in	2 mm	Black	0.079 in	2 mm	12	Solder	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Gold	Board to Cable/Wire	Copper Alloy	Keying Slot	1.25 A	UL94 V-0	Square	Surface Mount	Male Pin	0.15 in	3.81 mm	105 ░C	-55 °C	All	30 Áin	0.76 Ám	2	0.425 in	10.8 mm	200 µin	5.08 µm	Header
