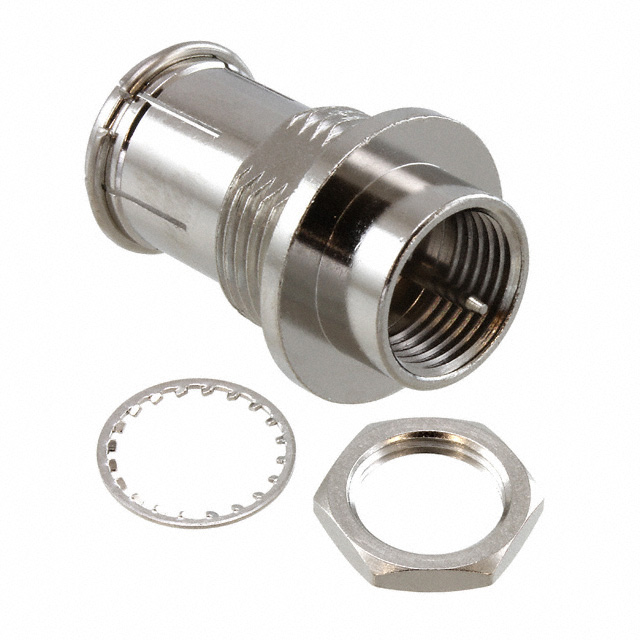

222206

Active

Amphenol RF

CONN ADAPT PLUG-PLUG F 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT PLUG-PLUG F 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	222206

Adapter Series	F to F
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Nickel
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	F Plug, Male Pin
Convert To (Adapter End)	Male Pin, F Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	2 GHz
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Style	Adapter Type	Convert To (Adapter End)	Frequency - Max [Max]	Mounting Feature	Center Contact Material	Impedance	Body Material	Includes	Center Contact Plating	Convert From (Adapter End)	Body Finish	Center Gender	Fastening Type	Conversion Type	Dielectric Material
Amphenol RF 222206	-65 ░C	165 °C	F to F	Straight	Plug to Plug	F Plug Male Pin	2 GHz	Bulkhead	Brass	75 Ohms	Brass	1 Connector 1 Lockwasher 1 Nut	Nickel	F Plug Male Pin	Nickel	Male to Male	Snap-On Threaded	Same Series	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector F Plug, Male Pin To F Plug, Male Pin 75 Ohms
