SD-RSMT-2-MQ-WF

Active

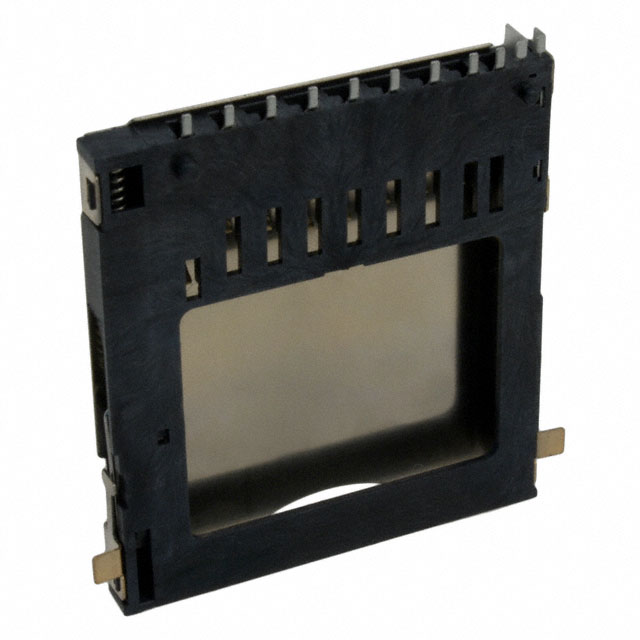

MEMORY CARD CONNECTOR, SD, PUSH-PUSH, 11 CONTACTS, COPPER ALLOY, GOLD PLATED CONTACTS, SD SERIES

Search across all available documentation for this part.

Active

MEMORY CARD CONNECTOR, SD, PUSH-PUSH, 11 CONTACTS, COPPER ALLOY, GOLD PLATED CONTACTS, SD SERIES

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SD CARD PUSH-PUSH R/A SMD

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Feature	Height Above Board	Height Above Board	Features	Number of Positions	Contact Finish	Card Type	Mounting Type	Insertion, Removal Method
3M SD-RSMT-2-MQ	Connector and Ejector	10 Áin	0.25 Ám	Normal, Standard - Top	3.1 mm	0.122 in	Board Guide, Switch	11	Gold	Secure Digital - SD	Surface Mount, Right Angle	Push In, Push Out
3M SD-RSMT-2-MQ-WF	Connector and Ejector	10 Áin	0.25 Ám	Normal, Standard - Top	3.1 mm	0.122 in	Board Guide, Switch	11	Gold	Secure Digital - SD	Surface Mount, Right Angle	Push In, Push Out

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 (9 + 2) Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold
