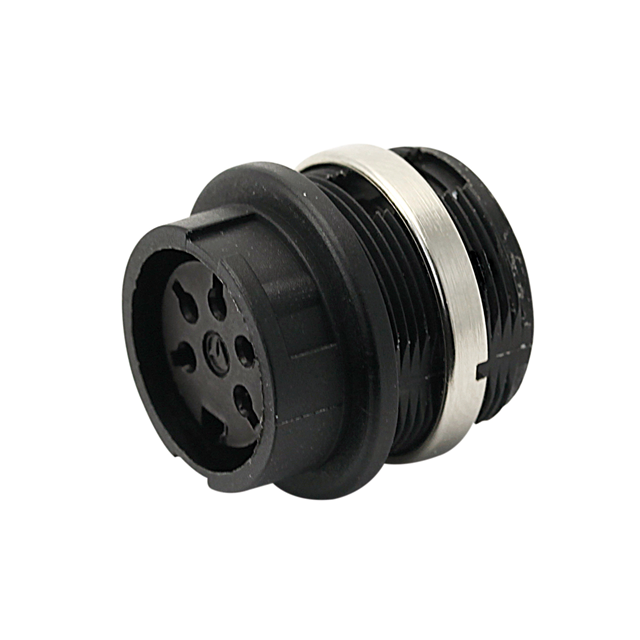

T 3377 018

Active

Amphenol Sine Systems Corp

STRAIGHT, FULL PLASTIC FRONT MOU

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

STRAIGHT, FULL PLASTIC FRONT MOU

Technical Specifications

Parameters and characteristics for this part

Specification	T 3377 018

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Fastening Type	Bayonet Lock
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Plastic
Shell Size - Insert	M16-5
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Mounting Feature	Shell Size - Insert	Shell Material	Shielding	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Applications	Ingress Protection	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Voltage Rating	Orientation	Insert Material	Color	Connector Type
Amphenol Sine Systems Corp T 3377 018	Bulkhead - Rear Side Nut	M16-5	Plastic	Unshielded	UL94 V-0	100 °C	-40 °C	Bayonet Lock	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	IP40	Gold	Plastic	7 A	250 VDC	Keyed	Thermoplastic	Black	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.14

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
