810-10095-00020

Obsolete

CnC Tech, LLC

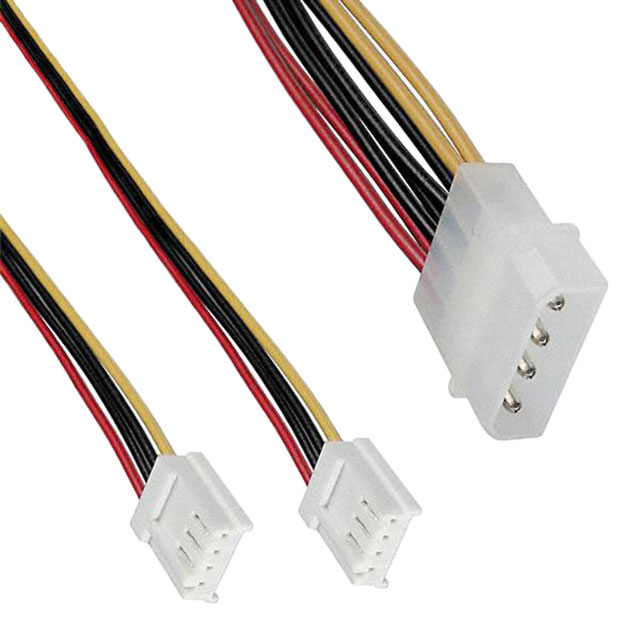

INTERNAL Y-POWER CABLE

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

INTERNAL Y-POWER CABLE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Cable Assembly Rectangular Socket (2) to Plug 0.656' (200.00mm, 7.87")

Technical documentation and resources

Specification	810-10095-00020	810-10 Series

Cable Termination	Crimp	Crimp
Color	Multiple, Individual	Gray, Individual (Round), Multiple, Individual, Black, Individual (Round)
Connector Type	Socket (2) to Plug	Socket to Socket, Socket (2) to Plug
Contact Finish	Tin	Tin, Brass
Length	7.87 in	7.87 in
Length	0.656 ft	0.656 ft
Length	200 mm	200 mm
Length	-	1.64 ft
Length	-	500 mm
Number of Positions	4	2 - 4
Number of Rows	1	1
Pitch - Connector	-	0.079 - 0.1 in
Pitch - Connector	-	2 - 2.54 mm
Shielding	Unshielded	Unshielded

Part	Number of Rows	Length [x]	Length [x]	Connector Type	Cable Termination	Number of Positions	Color	Contact Finish	Shielding	Pitch - Connector	Pitch - Connector	Length	Length	Length
CnC Tech, LLC 810-10052-00050	1	1.64 ft	500 mm	Socket to Socket	Crimp	4	Gray, Individual (Round)	Tin	Unshielded	0.1 in	2.54 mm
CnC Tech, LLC 810-10095-00020	1			Socket (2) to Plug	Crimp	4	Individual, Multiple	Tin	Unshielded			7.87 in	0.656 ft	200 mm
CnC Tech, LLC 810-10053-00050	1	1.64 ft	500 mm	Socket to Socket	Crimp	2	Black, Individual (Round)	Brass	Unshielded	0.1 in	2.54 mm
CnC Tech, LLC 810-10051-00050	1	1.64 ft	500 mm	Socket to Socket	Crimp	4	Gray, Individual (Round)	Tin	Unshielded	0.079 in	2 mm
