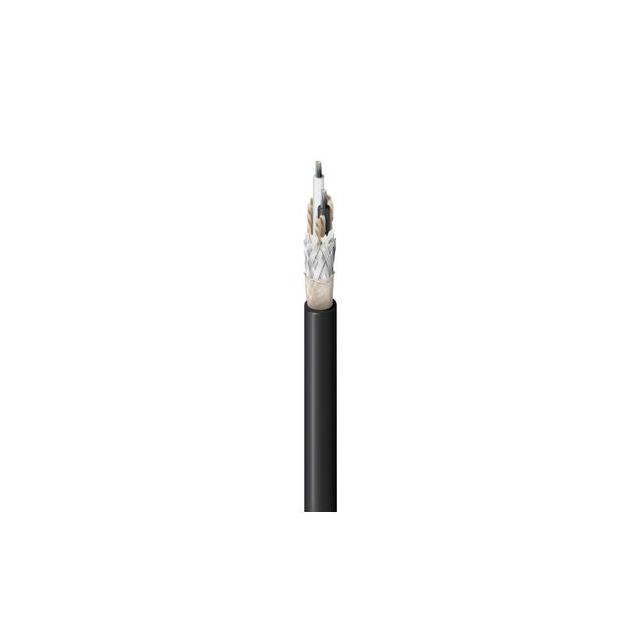

8412 010100

Active

Belden Inc.

2 #20 EPDM BRD EPDM

Search across all available documentation for this part.

Active

Belden Inc.

2 #20 EPDM BRD EPDM

Technical Specifications

Parameters and characteristics for this part

Specification	8412 010100

Cable Type	Microphone
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	6.65 mm
Jacket (Insulation) Diameter [diameter]	0.262 in
Jacket (Insulation) Material	Ethylene Propylene Terpolymer Rubber (EPDM)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-50 °C
Shield Coverage	85 %
Shield Material	Viscose; Copper, Tinned
Shield Type	Double Braid
Usage	Audio
Voltage	600 V
Wire Gauge	20 AWG

Part	Conductor Material	Jacket Color	Shield Type	Conductor Strand	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Usage	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Shield Coverage	Voltage	Number of Conductors	Length	Length	Length [x]	Length [x]
Belden Inc. 8412 0061000	Copper Tinned	Blue	Double Braid	26 34 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-50 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	Audio	Viscose; Copper Tinned	6.65 mm	0.262 in	Microphone	0.889 mm	0.035 in	20 AWG	85 %	600 V	2	1000 ft	304.8 m
Belden Inc. 8412 010100	Copper Tinned	Black	Double Braid	26 34 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-50 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	Audio	Viscose; Copper Tinned	6.65 mm	0.262 in	Microphone	0.889 mm	0.035 in	20 AWG	85 %	600 V	2			30.5 m	100 ft
Belden Inc. 8412 010250	Copper Tinned	Black	Double Braid	26 34 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-50 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	Audio	Viscose; Copper Tinned	6.65 mm	0.262 in	Microphone	0.889 mm	0.035 in	20 AWG	85 %	600 V	2	3000 "	76.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 3.27

General part information

2 Conductor Microphone Cable Black 20 AWG Double Braid 100.0' (30.5m)
